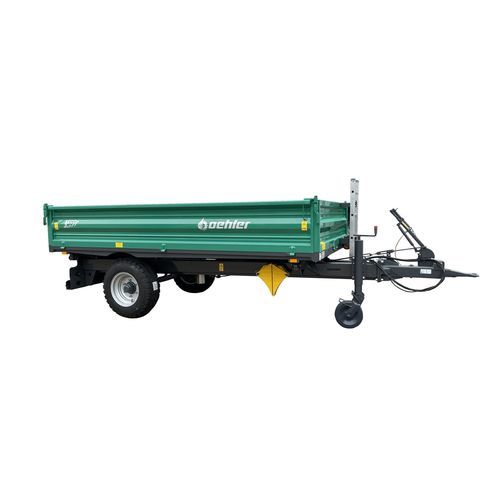

Dump trailer OL EDK 50 ECO

single-axleagricultural5 ton

OL EDK 50 ECO - Single-axle three-way tipper Permissible total weight: 5.0 t Internal platform dimensions: 3,500 x 1,800 x 500 mm Tires: 10.0/75 - 15.3 BKT AW702 Unladen weight approx.: 1,100 kg Base side wall: 500 mm Platform height approx.: 910 mm Base plate: 4 mm continuous, unwelded Maximum axle load capacity: 6,000 kg Tipper cylinder stages: 3 Cylinder stroke length: 1,050 mm Cylinder stages Ø mm: 60-75-90 Max. operating pressure: 200 bar Required oil quantity: 4.8 l Axles: Flange overflow automatic reverse (FAD) Electrics: 12 volt lighting system Other: Wheel chocks - Continuous 4 mm floor plate, unwelded - Closed C-frame - Flange overflow automatic reverse (FAD) - Fold-down steel side walls with rubbing strip, grain slide - Central locking only at the rear, plugged and screwed corner posts - FAD: Suitable for 25 km/h, load capacity 6,800 kg total weight, unsprung - Foldable support wheel - 12-volt lighting system, rear socket - ACC – dip coating + powder coating - 3-stage lift cylinder, 1050 mm lift, hard chrome-plated piston rod, gimbal mounting, automatic lift limit - Wheel chocks
