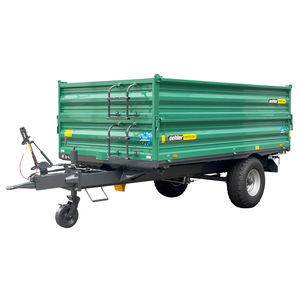

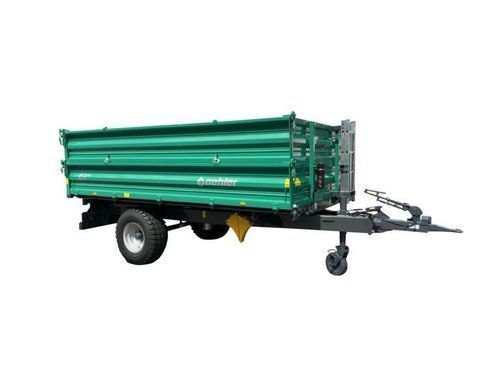

Dump trailer OL EDK 65 ECO PLUS

single-axleagricultural3-way

OL EDK 65 ECO PLUS - Single-axle three-way tipper Permissible total weight: 6.5 t Internal platform dimensions: 4,000 x 2,100(2,060) x 500 mm - Standard tires: 13.0/70 - 16 BKT AW702 - Unladen weight approx.: 1,600 kg - Base side wall: 500 mm - Platform height approx.: 1,080 mm - Base plate: 4 mm continuous, unwelded - Maximum axle load capacity: 7,000 kg - Tipper cylinder stages: 4 - Cylinder stroke length: 1,500 mm - Cylinder stage diameter (mm): 60-75-90-105 - Maximum operating pressure: 200 bar - Required oil quantity: 8.3 l - Axles: Flange overflow automatic reverse (FAD) - Electrical system: 12-volt lighting system - Other: Wheel chocks - Continuous 4 mm floor plate, unwelded - Closed C-frame - Flange overflow automatic reverse (FAD) - Foldable steel side walls with rubbing strip, grain slide - Central lock on 3 sides, bolted corner supports - FAD: 6.5 t permissible total weight, unsprung, 300 x 60 mm, square 70 mm - Foldable support wheel - 12-volt lighting system, rear socket - ACC – dip coating + powder coating - 4-stage lift cylinder, 1500 mm lift, hard chrome-plated piston rod, gimbal mounting, automatic lift limit - Wheel chocks
