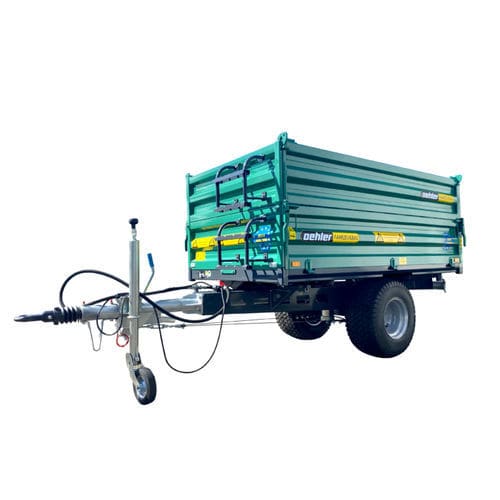

Tipping trailer OL EDK 20

single-axleagricultural2 ton

OL EDK 20 - Single-axle three-way tipper Permissible total weight: 2.0 t Unladen weight approx.: 500 kg Inner platform dimensions: 2,290 x 1,200 x 400 mm Standard tires: 26x12.0 LG-306 8 PR Standard side wall: 400 mm Platform height approx.: 760 mm Floor plate: 3 mm continuous, unwelded Max. axle load capacity: 2,000 kg Tilt cylinder stages: 3 Cylinder stroke length: 800 mm Cylinder stages Ø mm: 60-75-90 Max. operating pressure: 200 bar Required oil quantity: 3.6 l Brake: Automatic overrun brake (Schlegl) Electrics: 12 volt lighting system, rear socket Other: Wheel chocks - Torsion-resistant chassis made of sturdy closed C-frames - Perfectly sealed structure: 2.5 mm wall thickness, base side walls with high-quality side wall closures from Hestal & Bernhofer - Side walls + rear wall can be folded down - Torsion-free bridge frame with longitudinal + cross profiles - Schlegel axle: suitable for 25 km/h - Foldable support wheel - 12-volt lighting system, rear socket - Complete vehicle (frame, platform, side walls) cleaned in 9 immersion baths, degreased and then coated inside and out with ACC and main paint baked at 180 degrees - Precision ball tilt bearing with cross-locking device - Oversized tipping cylinder, 3-stage, 800 mm stroke, cardan-mounted with hard chrome-plated piston rod and stroke limiter valve
