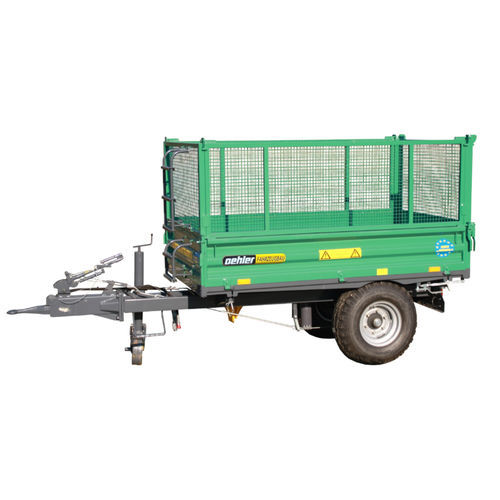

Tipping trailer OL EDK 35 S

single-axleagricultural0 t...10 t

OL EDK 35 S - Single-axle three-way tipper Permissible total weight: 3.5 t Standard tires: 10.0/75 - 15.3 BKT AW702 Unladen weight approx.: 750 kg Standard side wall: 400 mm Platform height approx.: 880 mm Base plate: 4 mm continuous, unwelded Max. axle load capacity: 3,500 kg Tipping cylinder stages: 3 Cylinder stroke length: 1,050 mm Cylinder stages Ø mm: 60-75-90 Max. operating pressure: 200 bar Required oil quantity: 4.8 l Brake: Flanged automatic overrun brake (BPW) Electrics: 12 volt lighting system Other: Wheel chocks - Chassis Rectangular tubular frame - Perfectly sealed construction: 2.5 mm wall thickness, base side walls with high-quality side wall closures from Hestal & Bernhofer - Side walls + rear wall pendulum-mounted and foldable with central locking at the rear, steel side walls, with rubbing strip - Torsion-free bridge frame with longitudinal + cross profiles, bolted corner posts - BPW axle: suitable for 25/40 km/h, unsprung - Foldable support wheel - 12-volt lighting system, rear socket - Complete vehicle (frame, platform, side walls) cleaned in 9 immersion baths, degreased and then coated inside and out with ACC and main paint baked at 180 degrees - Precision ball tilt bearing with cross-locking device - Oversized tilt cylinder, 3-stage, 1050 mm stroke, cardan-mounted with hard chrome-plated piston rod and automatic stroke limitation
