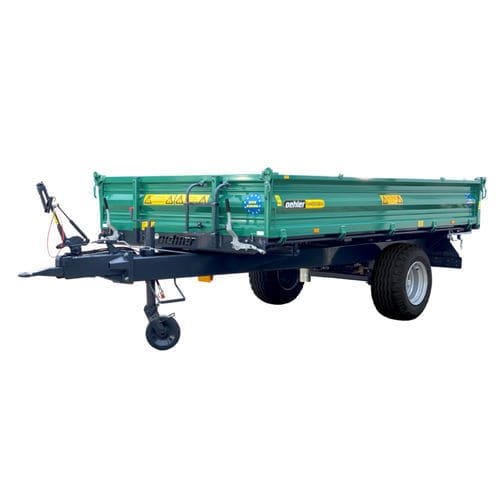

Tipping trailer OL EDK 60

single-axleagricultural6 ton

OL EDK 60 - Single-axle three-way tipper Permissible total weight: 6.0 t Standard tires: 13.0/75-16 BKT AW702 Unladen weight approx.: 1,600 kg Standard side wall: 500 mm Platform height approx.: 1,080 mm Floor plate: 4 mm continuous, unwelded Max. axle load capacity: 7,000 kg Tipping cylinder stages: 4 Cylinder stroke length: 1,500 mm Cylinder stages Ø mm: 60-75-90-105 Max. operating pressure: 200 bar Required oil quantity: 8.3 l Brake: Flanged automatic overrun brake (BPW) Electrics: 12-volt lighting system, rear socket Other: Wheel chocks - Torsion-resistant chassis made of sturdy closed C-frame - Flanged automatic overrun brake (BPW) - Steel side walls (side and rear walls) can be swung out separately, conical bridge, central locking on 3 sides, rubbing strip, grain slide - Torsion-free bridge frame with longitudinal + cross profiles, bolted corner posts - BPW axle suitable for 25 km/h, max. load capacity 7,000 kg, unsprung - Foldable support wheel - 12-volt lighting system, rear socket - Complete vehicle (frame, platform, side walls) cleaned in 9 immersion baths, degreased and then coated inside and outside with ACC and main paint baked at 180 degrees - Oversized tipping cylinder, 4-stage, 1500 mm stroke, cardan-mounted with hard chrome-plated piston rod and automatic stroke limitation
