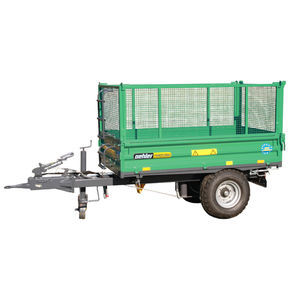

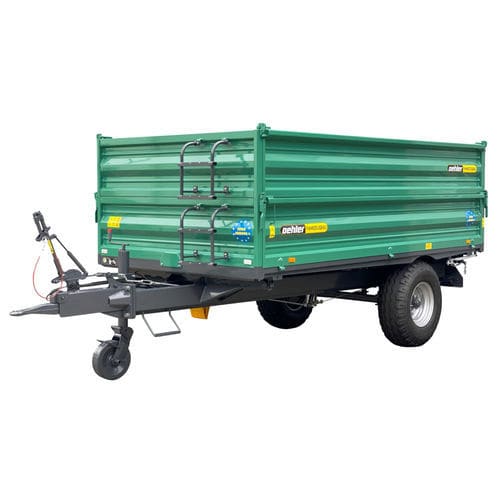

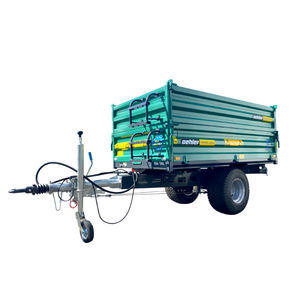

Tipping trailer OL EDK 60 S

single-axleagricultural6 ton

OL EDK 60 S - Single-axle three-way tipper Permissible total weight: 6.0 t Standard tires: 11.5/80 - 15.3 ALL 320 VALUE PLUS² Unladen weight approx.: 1,200 kg Base side wall: 500 mm Platform height approx.: 940 mm Floor plate: 4 mm continuous, unwelded Max. axle load capacity: 7,000 kg Tilt cylinder stages: 3 Cylinder stroke length: 1,050 mm Cylinder stages Ø mm: 60-75-90 Max. operating pressure: 200 bar Required oil quantity: 4.8 l Brake: Flanged automatic overrun brake (BPW) Electrics: 12-volt lighting system, rear socket Other: Wheel chocks - Torsion-resistant chassis made of sturdy closed C-frame - Flanged automatic overrun brake (BPW) - Perfectly sealed structure: 2.5 mm wall thickness, base side walls with high-quality side wall closures from Hestal & Bernhofer - Steel side walls (side walls and rear wall) can be folded down, attachments can be swung out separately, central locking at the rear, rubbing strip, grain slide - Torsion-free bridge frame with longitudinal + cross profiles, bolted corner posts - BPW axle suitable for 25 km/h, load capacity 7,000 kg - Foldable support wheel - 12-volt lighting system, rear socket - Complete vehicle (frame, platform, side walls) cleaned in 9 immersion baths, degreased and then coated inside and out with ACC and main paint baked at 180 degrees - Oversized tipping cylinder, 3-stage, 1050 mm stroke, cardan-mounted with hard chrome-plated piston rod and automatic stroke limitation
