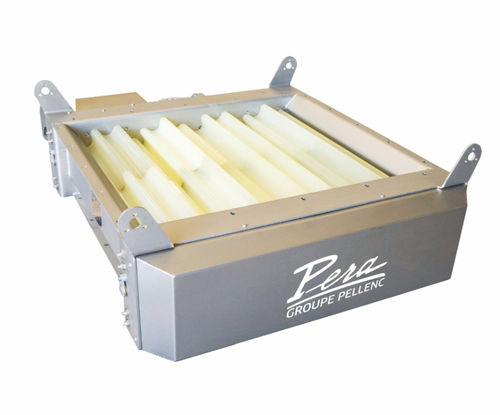

Feed crusher PERA

Overview
A range of roller crushers for grape processing in wineries. The PERA roller crushers lightly break berries to release juice and improve the vinification workflow. They are compatible with PELLENC PERA ŒNOPROCESS destemmers.

Roller crushers
The geometry of the roller lobes allows use with whole-cluster grapes or destemmed fruit. Each model features a stainless steel chassis and polyurethane rollers that adapt to the processed flow rate. Roller spacing is adjustable to match different vinification styles.

• Construction: stainless steel chassis
• Drive: Ertalon pinions for easier maintenance

Extractiv'2 crusher
Extractiv'2 introduces a controlled opening of berries according to maturity to optimize extraction of juice, polyphenols and aromatic compounds. Suitable for precision vinification with flow rates up to 25 t/h.

Technical features

• Models: F10 | F30C | F1000 | F704C | Extractiv'2
• Flow rates (t/h): 5–15 | 25–30 | 50–60 | 60–90 | up to 25
• Roller length (mm): – | 700 | 1000 | 700 | 960
• Rated power (kW): Driven by the H400 | 2.2 | 3 | 4 | 1.5
• Weight (kg): 45 | 300 | 300 | 300 | 66
• Roller type: Polyurethane | Polyurethane | Polyurethane | Polyurethane | –
• Adjustable spacing: yes | yes | no | yes | –
• Destemmer compatibility: H400 | H600 | H800 | H1000 | H400
