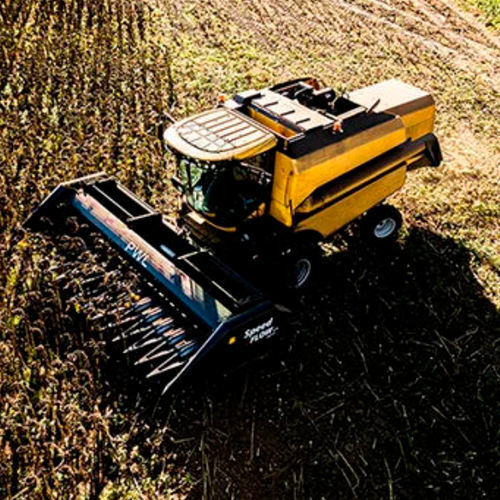

Sunflower harvesting header Speed FLOW 12.75

with hydraulic adjustmentfor combine harvestersrotary

Overview
PWL Speed Flow headers are rowless sunflower harvest headers designed to harvest regardless of sowing direction or inter-row spacing. They are available in multiple working widths and can be fitted with an optional roto-cut rotating cutter and rear reel/crushing reel to manage stem residue and protect combine components.

Key features

• Rowless design: harvests independently of inter-row spacing and sowing direction
• Optional roto-cut cutter: rotors shred residue to accelerate decomposition and protect the combine underside
• Reel/crushing reel behind the shredder for tire and crop protection
• Additional rotor under cutter bar and hydraulic flap to handle uneven-height sunflowers
• Adjustable platform clearance to minimise crop loss with thin-stem varieties
• Mountable on any combine with appropriate frame, hydraulic couplings and gearbox reductions

Roto-cut system
The roto-cut is mounted on an independent frame with hydraulic cutting-height adjustment from the operator cabin. It uses durable bevel gears and wear-resistant steel cutters with tungsten-carbide coating. Rotor tip speed: 25 m/s. The unit reduces residue size and is protected by a central friction clutch. Roto-cut is optional equipment.

Drive & transmission
Drive is transmitted via cast-iron bevel gear transmissions and PTO shafts for low maintenance and long service life. A central friction clutch protects the unit from damage caused by sudden jams.

Adjustability & operation
Platform clearance is manually adjustable (lower clearance reduces seed loss). Cutting height and hydraulic flap are adjustable from the cabin; a cutting-height indicator is visible on the header. Tilt and universal frame settings allow optimal working angle for different combine models.

Duty & performance
Design allows practical working speeds up to 12 km/h; documented working speed 7–10 km/h depending on configuration. Seed loss is documented up to 3% under recommended settings. Service interval: 10 h.

Technical table
Model: Speed Flow — 6.75, 7.75, 8.75, 9.75, 10.75, 11.75, 12.75, 13.75, 14.75, 15.75
Working width (m): 4.1; 4.85; 5.6; 6.35; 7.1; 7.85; 8.6; 9.35; 10.1; 10.85 (page also indicates availability up to 13.1 m)
Overall width (m): 4.6; 5.35; 6.1; 6.85; 7.6; 8.35; 9.1; 9.85; 10.6; 11.35
Weight with roto-cut (kg): 2000; 2200; 2430; 2560; 2700; 2830; 2980; 3200; 3450; 3630
Number of roto-cut blades: 12; 14; 16; 18; 20; 22; 24; 26; 28; 30
Cutter system: roto-cut (optional)
Blade coating hardness: 60 HRC
Adjustable platform clearance: 3.5–7 cm
Roto-cut rotor tip speed: 25 m/s
Working speed (documented): 7–10 km/h (operational capability up to 12 km/h)

Technical specifications

• Model: Speed Flow
• Working widths available (m): 4.1; 4.85; 5.6; 6.35; 7.1; 7.85; 8.6; 9.35; 10.1; 10.85 (up to 13.1 m noted)
• Overall widths (m): 4.6; 5.35; 6.1; 6.85; 7.6; 8.35; 9.1; 9.85; 10.6; 11.35
• Weight with roto-cut (kg): 2000–3630 by configuration
• Number of roto-cut blades: 12–30 (by configuration)
• Cutter system: roto-cut (optional)
• Blade coating: wear-resistant steel with tungsten-carbide coating (60 HRC)
• Adjustable platform clearance: 3.5–7 cm
• Roto-cut rotor tip speed: 25 m/s
• Working speed (documented): 7–10 km/h; operational capability up to 12 km/h
• Seed loss: up to 3%
• Service interval: 10 h
• Drive: cast-iron bevel gear transmissions and PTO shafts; central friction clutch protection
• Features for uneven crops: hydraulic flap and rotor under cutter bar; adjustable head gripper and screw conveyor for gentle transfer to combine
• Compatibility: mountable to any combine with appropriate mounting frame, hydraulic couplings and gearbox reductions
