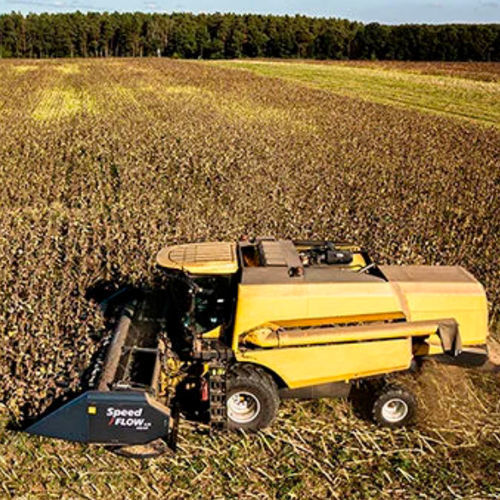

Sunflower harvesting header Speed FLOW 14.75

with hydraulic adjustmentaugerfor combine harvesters

Product name
PWL SpeedFlow headers are rowless sunflower harvest headers designed to harvest regardless of sowing direction. Optional roto-cut rotating cutter and a shredding reel are available to process stem residue. Design features ensure low seed loss (up to 3%) and allow operating speeds up to 12 km/h. An auxiliary rotor under the cutter bar and a hydraulic flap enable effective work on uneven fields. Machines are offered in working widths from 4.10 m to 13.10 m.

Adjustable platform width
Higher effective yield: reducing the clearance between crop divider platforms decreases crop loss. Platform widths are manually adjustable; for thin-stem varieties clearance can be reduced to 3.5–7 cm to minimise losses.

Independence of row orientation
Harvest in any direction: regardless of inter-row spacing, the Speed Flow header can harvest sunflowers in every direction. This is suitable where inter-row widths vary by farm or region.

Roto-cut system
Optional roto-cut is mounted on an independent frame. Cutting height is hydraulically adjusted from the cab. The system uses durable bevel gears and cutters in wear-resistant steel with tungsten carbide coating. Cutter rotors shred residue at 25 m/s (blade tip). Roto-cut accelerates residue decomposition and protects the underside of the harvester. A crushing reel behind the shredder protects tyres.

Drive transmission
Roto-cut drive is transmitted via cast-iron bevel gearboxes and PTO shafts. A central friction clutch protects the machine from damage caused by sudden jams, enabling higher working speeds and reliable operation with low maintenance needs.

Renowned components
The cutting unit uses components from well-known manufacturers to ensure durability and serviceability.

Harvesting sunflowers of uneven height
Height regulation uses a retractable hydraulic flap and a rotor under the cutter bar: the flap bends heads forward while the rotor pulls stems down. Heads rest on platforms and are cut beneath so only heads enter the combine; plants of varying heights are handled effectively.

High operating speed
Speed Flow headers allow work up to 12 km/h. An adjustable head gripper transfers cut sunflowers carefully to the central auger conveyor.

Universality
Speed Flow headers can be mounted on most combine harvesters. Matching mounting frames, hydraulic couplings and gearbox reductions are chosen to adapt the header to different combine models. Tilt adjustment and universal frame settings enable optimal working angle selection.

Controls
Roto-cut cutting height and hydraulic flap are adjusted from the operator’s cabin. A cutting height indicator is fitted on the header and is visible to the operator.

Specifications

• Model: Speed Flow
• Available working widths (m): 4.10; 4.85; 5.60; 6.35; 7.10; 7.85; 8.60; 9.35; 10.10; 10.85 (page also indicates availability up to 13.10 m)
• Overall widths (m): 4.60; 5.35; 6.10; 6.85; 7.60; 8.35; 9.10; 9.85; 10.60; 11.35
• Weight with roto-cut (kg): 2000; 2200; 2430; 2560; 2700; 2830; 2980; 3200; 3450; 3630
• Number of roto-cut blades (per model): 12; 14; 16; 18; 20; 22; 24; 26; 28; 30
• Cutter system: roto-cut (optional)
• Blade coating hardness: 60 HRC
• Adjustable platforms: 3.5–7 cm
• Working speed (table): 7–10 km/h (page text indicates up to 12 km/h)
• Service interval: 10 h
• Seed loss: up to 3%
• Rotor shredder tip speed: 25 m/s (blade tip)
