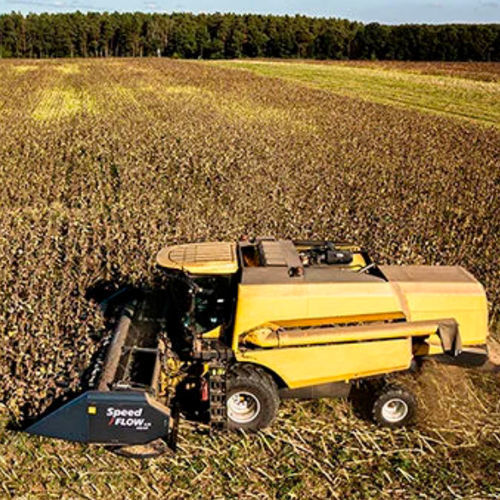

Sunflower harvesting header Speed FLOW 8.75

with hydraulic adjustmentfor combine harvestersuniversal

Overview
Speed Flow sunflower headers are rowless harvest headers designed to harvest regardless of sowing direction. Optional roto-cut rotating cutter with a reel shreds stem residues and protects the combine underside. Design solutions keep seed loss down to around 3% and enable operating speeds up to 12 km/h. An under-cutter rotor and hydraulic flap allow work on uneven sunflower fields. Available working widths range from 4.1 m to 13.1 m.

Key features

• Rowless design: harvest regardless of row orientation and inter-row spacing.
• Optional roto-cut rotating cutter with reel to shred stems and protect the combine underside.
• Low seed loss: engineering measures achieve seed loss of up to 3%.
• High operating speed: up to 12 km/h with adjustable sunflower head gripper and collection screw conveyor.
• Manually adjustable crop divider platform width to minimize losses with thin-stem varieties (3.5–7 cm clearance).
• Hydraulic flap and under-cutter rotor for uneven-height sunflowers and irregular fields.
• Universal mounting: compatible with most combines via dedicated mounting frame, hydraulic couplings and gearbox reductions.

Roto-cut system
The optional roto-cut system is mounted on an independent frame with hydraulic adjustment of cutting height from the operator cabin. It uses durable bevel gears and cutters in wear-resistant steel with tungsten carbide coating. Rotor blade tip shredding speed is 25 m/s. A crushing reel behind the shredder protects tyres and accelerates residue decomposition.

Drive and components
Power to the roto-cut is transmitted via cast-iron bevel gear transmissions and PTO shafts, protected by a central friction clutch to prevent damage from sudden jams. The cutting unit incorporates components from established manufacturers to ensure durability and reliability.

Technical table
Model: Speed Flow | 6.75 | 7.75 | 8.75 | 9.75 | 10.75 | 11.75 | 12.75 | 13.75 | 14.75 | 15.75
Working width (m) | 4.1 | 4.85 | 5.6 | 6.35 | 7.1 | 7.85 | 8.6 | 9.35 | 10.1 | 10.85
Overall width (m) | 4.6 | 5.35 | 6.1 | 6.85 | 7.6 | 8.35 | 9.1 | 9.85 | 10.6 | 11.35
Weight with roto-cut (kg) | 2000 | 2200 | 2430 | 2560 | 2700 | 2830 | 2980 | 3200 | 3450 | 3630
Number of roto-cut blades | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30
Cutter system | roto-cut (optional)
Blade coating hardness | 60 HRC
Adjustable platforms clearance | 3.5–7 cm
Working speed | 7–10 km/h (operational up to 12 km/h)
Service interval | 10 h

Specifications

• Model: Speed Flow.
• Working widths: from 4.1 m up to 13.1 m depending on model variant.
• Overall widths: 4.6 m up to 11.35 m depending on model.
• Weight with roto-cut: 2000–3630 kg depending on model size.
• Roto-cut blades: 12–30 blades depending on model.
• Cutter: optional roto-cut; blade coating toughness 60 HRC; rotor blade tip speed 25 m/s.
• Adjustable crop divider clearance: 3.5–7 cm (manual).
• Working speed: typical 7–10 km/h; possible operation up to 12 km/h.
• Service interval: 10 hours.
• Features for uneven-height sunflowers: hydraulic flap and under-cutter rotor for consistent cutting.
• Universal mounting for most combine models via dedicated frame and hydraulic couplings.
