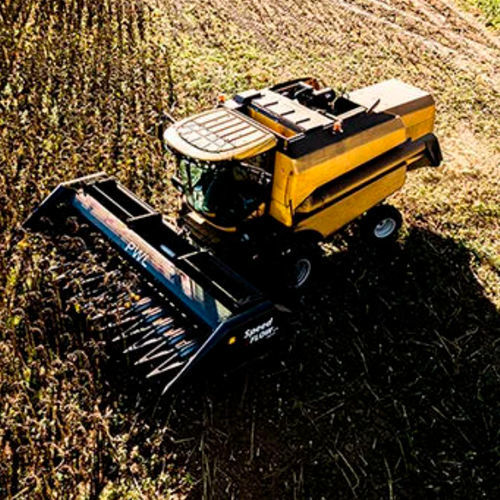

Sunflower harvesting header Speed FLOW 15.75

with hydraulic adjustmentaugerfor combine harvesters

Product overview
PWL Speed Flow headers are rowless sunflower harvest headers designed to harvest sunflowers regardless of sowing direction. Units are available in multiple working widths from 4.1 m to 13.1 m and can be fitted with an optional roto-cut rotating cutter and reel to shred stem residue and protect combine tyres. The design targets seed loss as low as 3% and an operational speed up to 12 km/h, with a table-listed working speed of 7–10 km/h.

Key features

• Rowless design: enables harvesting irrespective of row orientation.
• Optional roto-cut system: rotating cutters with a crushing reel behind the shredder to protect combine tyres.
• Adjustable crop divider platform width (3.5–7 cm) to minimise losses with thin-stem varieties.
• Hydraulically adjustable cutting height for the roto-cut system, controlled from the operator cabin.
• Additional rotor under the cutter bar and hydraulic flap to manage uneven sunflower heights—flap bends heads forward and rotor pulls them down for correct cutting.
• Adjustable sunflower head gripper transfers cut heads to the collection screw conveyor.
• Universal mounting: compatible with any combine when equipped with appropriate mounting frame and hydraulic couplings.

Roto-cut system and drive
The optional roto-cut assembly is mounted on an independent frame. Rotor tip speed reaches 25 m/s. Cutters are manufactured from wear-resistant steel with tungsten carbide coating. Power is transmitted via cast-iron bevel gear transmissions and PTO shafts. A central friction clutch protects the unit against sudden jams and allows higher working speeds.

Adjustable platform width & harvest quality
Crop divider platforms are manually adjustable within a 3.5–7 cm range; narrower clearances reduce seed loss. The platform and head handling design aim to ensure mostly flower heads enter the combine, maintaining harvest quality across sunflowers of varying heights.

Additional notes

• Blade coating hardness: 60 HRC.
• Service interval: 10 hours.
• Roto-cut listed as optional in the technical table.

Technical specifications table

• Model: Speed Flow
• Working width variants: 4.1; 4.85; 5.6; 6.35; 7.1; 7.85; 8.6; 9.35; 10.1; 10.85 m (range stated up to 13.1 m)
• Overall width variants: 4.6; 5.35; 6.1; 6.85; 7.6; 8.35; 9.1; 9.85; 10.6; 11.35 m
• Weight with roto-cut by variant: 2000–3630 kg
• Number of roto-cut blades by variant: 12–30
• Cutter system: roto-cut (optional), rotor tip speed 25 m/s; cutters coated with tungsten carbide
• Blade coating toughness: 60 HRC
• Adjustable platform clearance: 3.5–7 cm
• Working speed: table 7–10 km/h; page text up to 12 km/h
• Seed loss: up to 3% (claimed)
• Drive: cast-iron bevel gear transmissions and PTO shafts; central friction clutch protection
• Features for uneven fields: hydraulic flap and rotor under cutter bar
• Universal mounting: adaptable to combines with appropriate mounting frame and hydraulic couplings
