Power harrow HRW series

foldingwith rollercombined

Overview

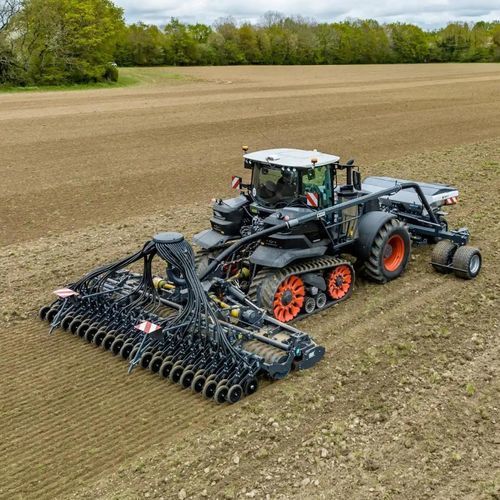

SKY rotary harrows (CULTILINE HRW series) are designed for combined operation to maximise field productivity while reducing the number of passes. Suitable for contractors and farmers working large-area crops, the HRW range offers wide working widths and heavy-duty components.

Transport safety
An intermediate frame supports the hydraulic folding system; each folding cylinder is equipped with safety guide yokes. Hydraulically-operated transport lock with a folded overall width of 2.95 m (2.50 m for HRW SLIM versions). Chassis in reinforced steel.

Central drive unit
A WALTERSCHEID 'Power Line' cardan shaft transmission (lubrication only every 250 hours) fitted with a torque limiter with automatic release/reset. Central drive units available for 280 or 360 hp (depending on series).

Rotors and bearings
Rotors mounted on tapered roller bearings, heavily dimensioned and combined with a large-diameter shaft to maintain constant tine-holder alignment even in extreme conditions. Factory-fitted spacer requires no further adjustment. Key components: Walterscheid - Timken - SKF.

Technical data (summary tables)
HRW Series .28 - 4000.28 / 4500.28 / 5000.28 / 6000.28
TYPE | HRW 4000.28 | HRW 4500.28 | HRW 5000.28 | HRW 6000.28
Working width | 4.00 m | 4.50 m | 5.00 m | 6.00 m
Number of rotors | 16 | 18 | 20 | 24
Power | 120-280 hp | 120-280 hp | 120-280 hp | 120-280 hp
PTO rotation frequency | 1000 rpm | 1000 rpm | 1000 rpm | 1000 rpm
Gearbox | Sprockets | Sprockets | Sprockets | Sprockets
Rotor frequency (rpm) | 283/341 | 283/341 | 283/341 | 283/341
Weight cage roller Ø 500 mm | 2430 kg | 2610 kg | 2790 kg | 3150 kg
Weight of packer roller Ø 550 mm | 2770 kg | 2980 kg | 3190 kg | 3610 kg

HRW Series .36 - 6000.36 / 7000.36 / 8000.36
TYPE | HRW 6000.36 | HRW 7000.36 | HRW 8000.36
Working width | 6.00 m | 7.00 m | 8.00 m
Number of rotors | 24 | 28 | 32
Power | 180-360 hp | 210-360 hp | 240-360 hp
PTO rotation frequency | 1000 rpm | 1000 rpm | 1000 rpm
Gearbox | Sprockets | Sprockets | Sprockets
Rotor frequency (rpm) | 283/341 | 283/341 | 283/341
Weight of packer roller Ø 550 mm | 3710 kg | 4130 kg | 4550 kg

Components & specifications

• Series name: HRW (CULTILINE HRW)
• Working widths available: 4.00 m to 8.00 m
• Number of rotors: from 16 to 32 depending on model
• Power requirement: 120-280 hp (.28 series); 180-360 / 210-360 / 240-360 hp (.36 series variants)
• PTO rotation frequency: 1000 rpm (all models)
• Gearbox type: sprockets
• Rotor frequencies: 283 / 341 rpm
• Weights (examples): cage roller Ø 500 mm: 2430–3150 kg; packer roller Ø 550 mm: 2770–4550 kg
• Drive transmission: WALTERSCHEID 'Power Line' cardan shaft with torque limiter (automatic release/reset); lubrication interval every 250 hours
• Transport width (folded): 2.95 m (standard) / 2.50 m (HRW SLIM)
• Chassis: reinforced steel
• Bearings: tapered roller bearings, factory-fitted spacer; components: Walterscheid, Timken, SKF
