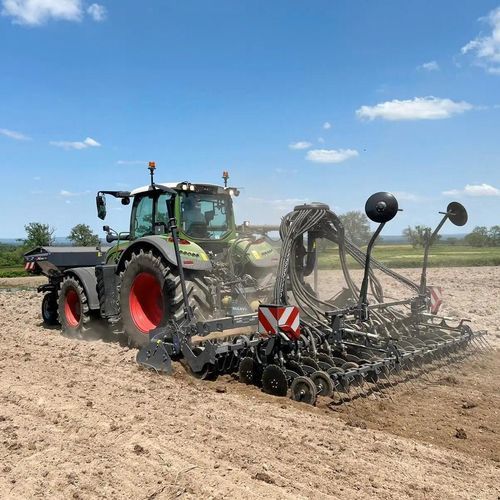

Power harrow HR series

with rollercombined

Overview
SKY rotary harrows are designed for combined operation with seed drills. The hopper inclination and shape enable efficient rear discharge, preventing settling in front of the hatch. A higher front weight of the loaded hopper shifts load to the tractor for improved traction. The machine remains stable even when unladen, ensuring consistent ride comfort.

Main advantages

• The incline provides excellent rear emptying, avoiding compaction ahead of the hatch.
• Front-weighted hopper transfers part of the load to the tractor for maximum grip.
• Stable behaviour when unladen for improved comfort and handling.

A perfect seedbed
4 rotors per metre deliver a uniform seedbed without swaths or ridges and reduce traction requirements. Chassis made from reinforced steel.

Tapered roller bearings
Heavily dimensioned tapered roller bearings combined with a large-diameter shaft maintain adapter alignment under severe conditions. Factory-fitted with a spacer; no further adjustment required. This modern bearing solution enhances reliability and resale value of the implement.

First-class components
Walterscheid – Timken – SKF

Technical data — HR Series .14
TYPE | HR Series .14 – 2500.14 | HR Series .14 – 3000.14
Working width | 2,50 m | 3,00 m
Number of rotors | 10 | 12
Power requirements | 70-140 hp | 70-140 hp
PTO rotation frequency | 1000 rpm | 1000 rpm
Gearbox | Sprockets | Sprockets
Rotor frequency (rpm) | 283/341 | 283/341
Weight Cage roller Ø 500 mm | 983 kg | 1120 kg
Weight Packer roller Ø 550 mm | 1150 kg | 1310 kg

Technical data — HR .19 and .22 series
TYPE | 3000.19 | 3500.22 | 4000.22
Working width | 3,00 m | 3,50 m | 4,00 m
Number of rotors | 12 | 14 | 16
PTO rotation frequency | 1000 rpm | 1000 rpm | 1000 rpm
Weight Cage roller Ø 500 mm | 1315 kg | 1495 kg | 1605 kg
Weight Packer roller Ø 550 mm | 1515 kg | 1735 kg | 1875 kg
Roller weight Tracker Ø 550 mm | 1703 kg | 1966 kg | 2132 kg

Technical data — HR .30 series
TYPE | 3000.30 | 3500.30 | 4000.30
Working width | 3,00 m | 3,50 m | 4,00 m
Number of rotors | 12 | 14 | 16
PTO rotation frequency | 1000 rpm | 1000 rpm | 1000 rpm
Weight cage roller Ø 500 mm | 1380 kg | 1515 kg | 1670 kg
Weight of packer roller Ø 550 mm | 1580 kg | 1790 kg | 1940 kg
Roller weight Tracker Ø 550 mm | 1768 kg | 1931 kg | 2197 kg

Notes
Designed to operate in combination; hopper inclination and shape assist emptying and stability. Robust tapered bearings and high-quality branded components improve reliability and resale value.

Specifications / Technical features

• Series: HR (.14, .19, .22, .30)
• Working widths available: 2,50 m; 3,00 m; 3,50 m; 4,00 m
• Number of rotors: from 10 up to 16 depending on model
• Rotor arrangement: 4 rotors per metre for improved seedbed
• Power requirements: 70-140 hp (varies by model)
• PTO rotation frequency: 1000 rpm
• Gearbox: sprockets (as specified per variant)
• Rotor frequency: 283 / 341 rpm (where specified)
• Roller options and weights: cage rollers Ø 500 mm and packer/tracker Ø 550 mm with weights by model (see technical tables above)
• Key components: Walterscheid, Timken, SKF; tapered roller bearings with large-diameter shaft
• Chassis: reinforced steel
