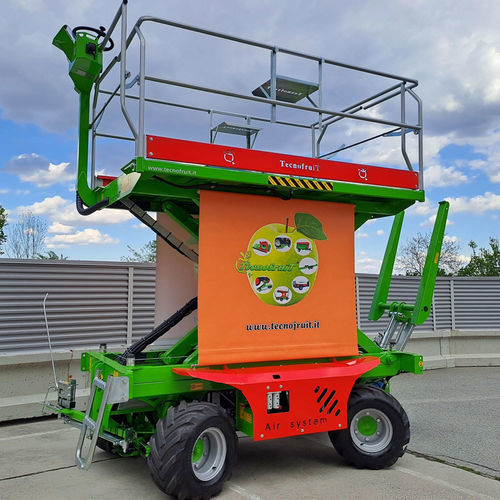

Horticulture harvest trolley

self-propelledelectrichydraulic drive

Brief description
Harvest collection cart with a standard length of 2.50 m and available widths of 1.50 m or 1.70 m. Fruit collection vehicle equipped with a waterproof electrical control panel, motor protection and hour meter. Protections against branches and impacts; designed for reduced noise and increased operator safety. Movable guide on guide slots for easy positioning. Large-capacity tanks with no protruding parts or pipes. Fitted with oscillating elevators, steering on four independent wheels with self-aligning device, and hydraulic rollers or chain conveyors. Accessories include pruning pole with hooks, hydraulic-adjustable automatic guidance and removable USB radio.

Optional (Digital & Precision Agriculture devices)

• Satellite tracking and remote parameter monitoring via web portal or SMS
• Engine hour counting
• Counting of bins discharged by the elevator with unload position displayed on a map
• Geofence detection within a configured perimeter
• Remote on/off for compressor and automatic guidance

Information (summary)
Standard length shown: 2.50 m; available widths: 1.50 m or 1.70 m.
48 V electric drive with 420 Ah lead‑acid removable battery; available charger 3 kW single‑phase (220 V) or three‑phase (380 V). Electric transmission with 2‑speed mechanical gearbox and removable battery; estimated recharge time: 7 hours. Remote monitoring device for consumption and battery charge included on electronic versions.
Alternative powertrain: Yanmar 1400 cc, 30 hp, direct injection for lower consumption and better low‑speed torque; engine mounted on balanced springs to reduce vibrations. Hydrostatic transmission with 28 cc piston pump and 2‑speed electrohydraulic gear shifting for gear changes on the move; negative parking brake.
Available variants: lengths 2.5 / 2.8 / 3.5 / 4.0 m and widths 1.50 / 1.70 / 1.80 m.
Compressor options: 500 L or 650 L with electrohydraulic drive and 45 L air reservoir. Ultra‑compact foldable elevators; ultra‑flat floor without steps; optional 4‑wheel drive and 2 or 4 self‑aligning steering wheels; maximum height 2.95 m.

Features / technical specifications

• Available lengths: 2.50 / 2.80 / 3.50 / 4.00 m
• Available widths: 1.50 / 1.70 / 1.80 m
• Maximum height: 2.95 m
• Ultra‑flat floor without steps
• 48 V electric drive with 420 Ah lead‑acid removable battery; 3 kW charger single‑phase or three‑phase; estimated recharge time 7 hours
• Electric transmission with 2‑speed mechanical gearbox
• Alternative engine: Yanmar 1400 cc, 30 hp, direct injection
• Hydrostatic transmission with 28 cc piston pump and 2‑speed electrohydraulic gearshift (gear changes on the move)
• Negative parking brake
• Oscillating, ultra‑compact foldable elevators
• Hydraulic rollers or chain conveyors
• Four independent steering wheels with self‑aligning device; optional 4‑wheel drive
• Compressor 500 or 650 L with electrohydraulic drive and 45 L air reserve
• Waterproof electrical panel with motor protector and hour meter; remote consumption and battery charge monitoring included for electronic versions
• Movable guide on guide slots; automatic guidance with hydraulic adjustment (optional)
• Large‑capacity tanks without protruding parts or pipes
• Protections against branches and impacts for reduced noise and improved safety
• Accessories: pruning pole with hooks, removable USB radio, and additional automation/telemetry options
