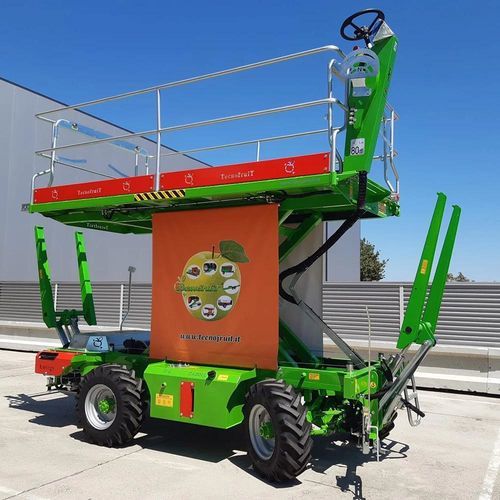

Horticulture harvest trolley

self-propelledadjustable-heightelectric

Description
Collection trailer length 3.5 m and width 1.70 m or 1.80 m.
Fruit picking trailer with a user‑friendly, sealed electric control panel, motor protection and hour counter. Protections to prevent damage from branches and impacts, improving noise reduction and safety. Movable guide eased by slotted guide rails. Large-capacity tanks without protruding parts or pipes. Equipped with elevators with swing, steering on 4 independent wheels with self-alignment device, and hydraulic roller conveyors or chain conveyors. Supplied with accessories including a pruning pole with convenient hooks, automatic guidance with hydraulic adjustment and removable USB radio.

Information (table)
Collection trailer length 3.5 m and width 1.70 m or 1.80 m
Electric traction 48 V with 420 Ah lead battery, available with 3 kW single-phase (220 V) or three-phase (380 V) charger. Electric transmission with 2-speed mechanical gearbox, removable battery. Estimated recharge time: 7 hours. Standard remote device for monitoring battery consumption and charge.
Yanmar engine 1400 cc, 30 HP, direct injection for lower fuel consumption and torque at low revs on balanced springs to reduce vibrations; hydrostatic transmission with 28 cc piston pump and 2-speed electrohydraulic gearshift for on-the-move shifting; negative parking brake.

Options

• Digital and precision agriculture system with satellite tracking and remote parameter monitoring
• Engine hour counter
• Count of bins unloaded with the rear elevator, with discharge position shown on map
• Geofencing detection of the machine within a set perimeter
• Remote on/off control of compressor and automatic guidance

Additional information (table)
Frame dimensions 3.5 x 1.80/1.70/1.50 m
Maximum height 2.95 m
Transmission on 2 or 4 driven wheels and 2 or 4 steering wheels
2-speed electrohydraulic gearbox for on-the-move shifting
Negative parking brake
Step-free platform with 80 cm opening per side, hydraulically operated by foot pedal at the front of the platform
Compressor 500 or 650 lt with electrohydraulic drive and 50 lt air reserve
Rollers on the platform
Front tips
Side covers to protect accessories
Wheels 10/075/15.3
Machine provided with CE certification signed by an engineer

Characteristics / Technical specifications

• Length: 3.50 m
• Width: 1.70 m or 1.80 m
• Frame: 3.5 x 1.80/1.70/1.50 m
• Maximum height: 2.95 m
• Electric traction: 48 V with 420 Ah lead battery
• Available charger: 3 kW single-phase (220 V) or three-phase (380 V)
• Electric transmission: 2-speed mechanical gearbox, removable battery
• Estimated recharge time: 7 hours
• Engine (alternative/additional): Yanmar 1400 cc, 30 HP, direct injection
• Hydrostatic transmission: 28 cc piston pump with 2-speed electrohydraulic shift
• Parking brake: negative brake
• Drive/steering: 2 or 4 driven wheels and 2 or 4 steering wheels
• Platform: 80 cm opening per side with hydraulic foot-pedal control
• Compressor: 500 or 650 lt with 50 lt air reserve
• Floor: hydraulic rollers or chain conveyors
• Accessories: pruning pole with hooks, automatic guidance with hydraulic adjustment, removable USB radio
• Wheels: 10/075/15.3
• Remote device for monitoring consumption and battery charge included
• Digital optional: satellite tracking, bin counting, geofence, remote compressor/guidance control
• Certification: CE (engineer signed)
