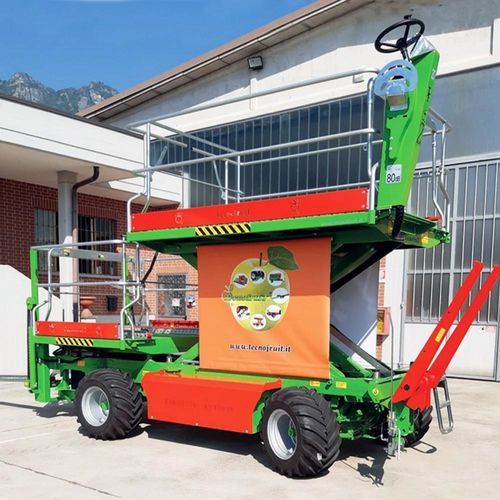

Greenhouse harvest trolley

self-propelledelectricbattery-powered

Overview
Collection cart with fixed platform at 110 cm. Fixed platform at 110 cm with tilting function to facilitate engine maintenance and a platform liftable up to 3 m. Intuitive, waterproof electrical panel equipped with motor protection and hour counter. Protections against branch impacts and bumps to improve noise reduction and safety. Movable guide on guide slots for easy positioning. Large-capacity tanks designed without protruding parts or pipes.

Main equipment
The cart is equipped with swing elevators; steering on 4 independent wheels with a self-aligning device; rollers or hydraulic chain conveyors. Supplied with accessories such as a pruning pole with convenient hooks, automatic guidance with hydraulic adjustment and a removable USB radio.

Information (table)
Collection cart with a fixed platform at 110 cm.
Electric traction 48 V with lead-acid battery 420 Ah; available with 3 kW charger single-phase (220 V) or three-phase (380 V). Electric transmission with 2-speed mechanical gearbox and removable battery. Estimated recharge time: 7 hours. Standard remote device to monitor consumption and battery charge.
Yanmar engine 1400 cc, 30 hp, direct injection for lower consumption and torque at low revs; balanced springs to reduce vibrations; hydrostatic transmission with 28 cc piston pump and 2-speed electrohydraulic shifting for on-the-move gear changes; negative parking brake.

Optional

• Digital and precision agriculture device with satellite tracking and remote parameter monitoring.
• Engine hours counter.
• Count of bins unloaded with the rear elevator, with unloading position displayed on a map.
• Geofencing to detect the vehicle within a set perimeter.
• Remote on/off control for compressor and automatic guidance.
• Additional monitoring and remote-control functions.

Accessories and integrations

• Pruning pole with hooks.
• Automatic guidance with hydraulic adjustment.
• Removable USB radio.
• Optional parking brake kit.

Technical characteristics / specifications

• Fixed platform height 110 cm; platform liftable up to 3 m; tilting for engine maintenance.
• Waterproof electrical panel, motor protection and hour counter as standard.
• Electric traction 48 V with lead-acid battery 420 Ah; removable battery; 3 kW charger single-phase or three-phase (options).
• Electric transmission with 2-speed mechanical gearbox; remote monitoring device for consumption and battery status.
• Yanmar engine 1400 cc, 30 hp, direct injection (combustion engine version available as specified).
• Hydrostatic transmission with 28 cc piston pump and 2-speed electrohydraulic gearbox; negative parking brake.
• Steering: 4-wheel independent steering with self-aligning device.
• Handling solutions: swing elevators; rollers or hydraulic chain conveyors.
• Large-capacity tanks designed without protruding pipes or parts.
• Protections against branches and impacts for reduced noise and improved safety.
