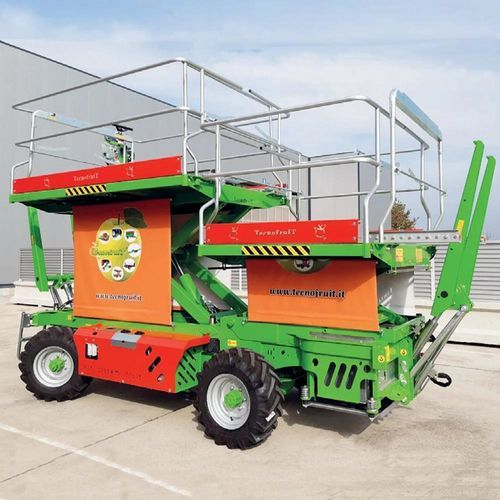

Pruning harvest trolley

orchardfor horticultureself-propelled

Description
Harvesting cart with 2 lift platforms.

Main features

• Sealed, intuitive electrical panel with motor protection and hour counter
• Protective guards to prevent damage from branches and impacts for reduced noise and improved safety
• Adjustable guidance sliding on guide slots
• Large-capacity tanks with no protruding parts or hoses
• Lift units with slewing/tilting movement
• 4-wheel independent steering with self-alignment device
• Roller conveyors or hydraulic chain conveyors
• Equipped with various accessories: pruning pole with convenient hooks, automatic guidance with hydraulic adjustment and removable USB radio

Information (table)
Information:
Harvesting cart with 2 lift platforms.
Electric traction 48 V with 420 Ah lead-acid battery; available with 3 kW single-phase (220 V) or three-phase (380 V) charger. Electric transmission with 2-speed mechanical gearbox and removable battery. Estimated charging time: 7 hours. Factory-fitted device for remote monitoring of consumption and battery charge.
Yanmar engine 1400 cc, 30 hp, direct injection for lower consumption and torque at low revs; balanced springs to reduce vibrations; hydrostatic transmission with 28 cc piston pump and 2-speed electrohydraulic gearbox for shifting on the move; negative parking brake.

Optional

• Digital and precision farming device with satellite tracking and remote parameter monitoring
• Engine hour counter
• Count of bins discharged with the rear elevator, with discharge position shown on a map
• Detection of the vehicle within a configured geographic perimeter (geofencing)
• Remote on/off control of compressor and automatic guidance

Technical characteristics / specifications

• Type: harvesting cart with 2 lift platforms
• Electric traction: 48 V
• Battery: 420 Ah lead-acid, removable
• Available charger: 3 kW single-phase (220 V) or three-phase (380 V)
• Estimated charging time: 7 hours
• Electric transmission: 2-speed mechanical gearbox
• Remote device for monitoring consumption and battery charge (factory-fitted)
• Engine (alternative/optional): Yanmar 1400 cc, 30 hp, direct injection
• Engine transmission: hydrostatic with 28 cc piston pump and 2-speed electrohydraulic gearbox
• Suspension/engine mounting: balanced springs to reduce vibrations
• Safety: motor protection, hour counter, guards against impacts and branches
• Steering: adjustable guidance on guide slots; 4-wheel independent steering with self-alignment
• Loading systems: lift units with slewing movement; roller conveyors or hydraulic chain conveyors
• Tanks: large capacity, no protruding parts or hoses
• Included/optional accessories: pruning pole with hooks; automatic guidance with hydraulic adjustment; removable USB radio
