Linear position sensor EH

non-contact

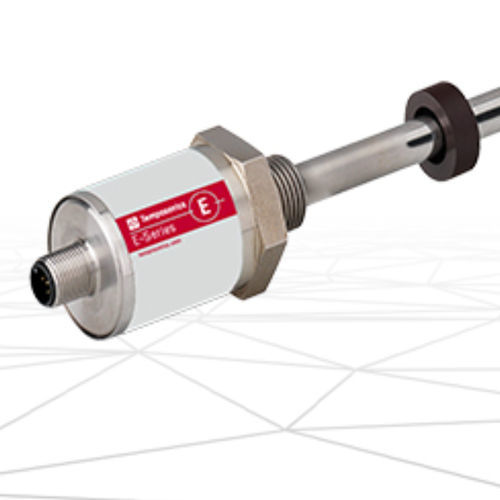

The Temposonics® E-Series EH Position Sensors are designed with a compact rod for in-cylinder applications, offering robust and versatile solutions for industrial position sensing.

Main Features

• Available in stainless steel 1.4404 (AISI 316L) for enhanced durability and corrosion resistance.
• Supports multi-position measurement with up to 8 magnets, enabling advanced position tracking in complex systems.
• Multiple output options including Analog, CANbus, IO-Link, SSI, and Start/Stop, ensuring compatibility with a wide range of control systems.

Technical Specifications

• Output Types: Analog, Start/Stop, SSI, CANopen, IO-Link
• Stroke Length: 50…2540 mm (2…100 in.)
• Resolution:
  • Analog: Infinite
  • Start/Stop: Controller dependent
  • SSI: 20 µm
  • CANopen: 10 µm
  • IO-Link: 5 µm
• Multi-Position Capability:
  • Analog: 2 positions
  • Start/Stop: 2 positions
  • SSI: -
  • CANopen: 2 positions
  • IO-Link: 8 positions
• Status: Active - Product is actively promoted and supported.

Available Documentation

• Data Sheets and Operation Manuals for each output type (Analog, Start/Stop, SSI, CANopen, IO-Link)
• 3D Model downloads for integration and design purposes
• Additional documentation for cable outlet configuration

Certifications & Approvals

• CE
• UL/cUL
• EAC
• UKCA

Characteristics / Technical Specifications

• Product Type: Industrial Position Sensor
• Series: E-Series
• Model: EH
• Material: Stainless steel 1.4404 (AISI 316L)
• Measurement: Multi-position (up to 8 magnets)
• Output Options: Analog, CANbus, IO-Link, SSI, Start/Stop
• Stroke Length Range: 50 to 2540 mm (2 to 100 in.)
• Resolution: Up to 5 µm (depending on output type)
• Status: Active
