Linear position sensor ER

non-contact

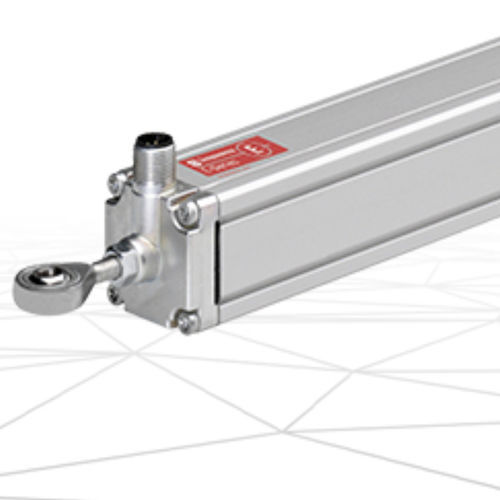

The Temposonics® E-Series ER is a position sensor featuring a guided driving rod that houses the sensor element, electronics, and position magnet. This sensor is designed for flexible mounting and offers a variety of output options to suit different industrial applications.

Main Features

• Flexible mounting options for diverse installation requirements
• Available outputs: Analog, CANbus, IO-Link, SSI, Start/Stop

Specifications

• Output types: Analog, Start/Stop, SSI, CANopen, IO-Link
• Stroke length: 50…1500 mm (2…60 in.) for all output types
• Resolution: Infinite (Analog), Controller dependent (Start/Stop), 20 µm (SSI), 10 µm (CANopen), 5 µm (IO-Link)
• Status: Active - Product is actively promoted and supported

Technical Characteristics / Specifications

• Guided driving rod containing sensor element, electronics, and position magnet
• Flexible mounting options
• Output options: Analog, CANbus, IO-Link, SSI, Start/Stop
• Stroke length: 50…1500 mm (2…60 in.)
• Resolution: Infinite (Analog), Controller dependent (Start/Stop), 20 µm (SSI), 10 µm (CANopen), 5 µm (IO-Link)
• Status: Active
