Linear position sensor ET series

non-contact

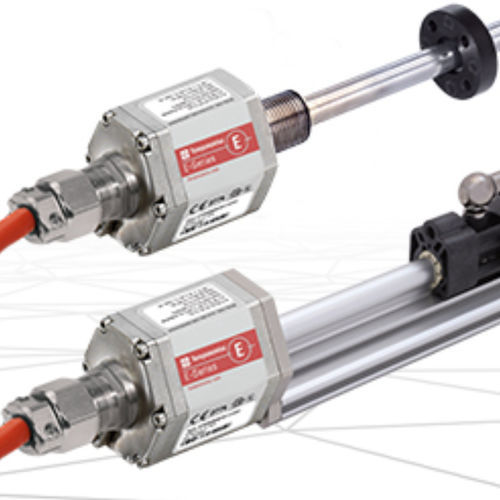

The Temposonics® E-Series ET is a compact rod position sensor designed for hazardous areas, offering robust performance and versatility for industrial applications. It is available in stainless steel 1.4404 (AISI 316L) and can operate at temperatures up to +105 °C (+221 °F). The sensor is certified for use in hazardous environments with ATEX, IECEx, CEC, NEC, CCC, and EAC certifications. It features programmable set points and supports multiple output types including Analog, SSI, and Start/Stop. The E-Series ET is available in both rod and profile versions, making it suitable for cylinder-integrated position measurement or for position measurement of a motion axis.

Main Features

• Available in stainless steel 1.4404 (AISI 316L)
• Operating temperature up to +105 °C (+221 °F)
• Certified: ATEX, IECEx, CEC, NEC, CCC, EAC
• Programmable set points
• Outputs: Analog, SSI, Start/Stop
• Available as rod version for cylinder integrated position measurement
• Available as profile version for position measurement of a motion axis

Specifications

• Output: Analog, Start/Stop, SSI
• Stroke Length: 50…3000 mm (2…118 in.)
• Resolution: Analog - 16 bit, Start/Stop - Controller dependent, SSI - 5 µm
• Multi-Position: Analog - 2, Start/Stop and SSI - not specified
• Status: Active (Product is actively promoted and supported)

Certifications

• CE
• ATEX
• NEC/CEC
• IECEx
• EAC
• CCC
• UKCA

Technical Characteristics / Specifications

• Product type: Compact rod position sensor for hazardous areas
• Material: Stainless steel 1.4404 (AISI 316L)
• Operating temperature: up to +105 °C (+221 °F)
• Certifications: ATEX, IECEx, CEC, NEC, CCC, EAC, CE, UKCA
• Programmable set points: Yes
• Output options: Analog, SSI, Start/Stop
• Stroke length: 50…3000 mm (2…118 in.)
• Resolution: Analog - 16 bit, SSI - 5 µm, Start/Stop - Controller dependent
• Multi-position capability: Analog - 2
• Available versions: Rod version, Profile version
• Status: Active
