Linear position sensor EP2

non-contact

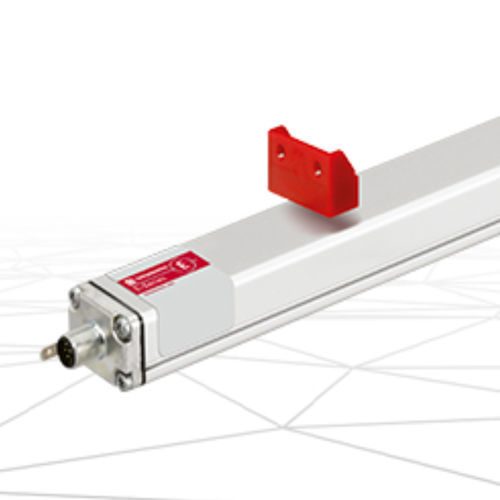

The Temposonics® E-Series EP2 Position Sensor is developed for use with a floating magnet along the entire housing, offering flexible mounting and a robust aluminum profile. It is capable of multi-position measurement with up to 8 magnets and supports a variety of output options including Analog, CANbus, IO-Link, SSI, and Start/Stop.

Main Features

• Flexible mounting for diverse installation requirements
• Robust aluminum profile ensures durability
• Multi-position measurement capability for up to 8 magnets
• Output options: Analog, CANbus, IO-Link, SSI, Start/Stop

Technical Specifications

• Output Types and Performance:
  • Analog: Stroke length 50…2540 mm (2…100 in.), Infinite resolution
  • Start/Stop: Stroke length 50…3000 mm (2…118 in.), Controller dependent resolution
  • SSI: Stroke length 50…2540 mm (2…100 in.), 20 µm resolution
  • CANopen: Stroke length 50…2540 mm (2…100 in.), 10 µm resolution
  • IO-Link: Stroke length 50…2540 mm (2…100 in.), 5 µm resolution
• Status: Active - Product is actively promoted and supported

Certifications & Approvals

• CE
• UL/cUL
• EAC
• UKCA
