Linear position sensor E series

non-contact

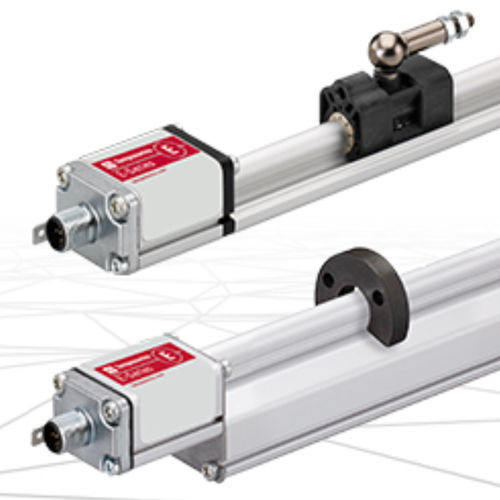

The Temposonics® E-Series EP/EL Position Sensors are designed with a compact profile, making them ideal for applications where space is limited. These sensors feature ultra-low designs for external mounting and support multi-position measurement with up to 8 magnets. They offer a variety of output options including Analog, CANbus, IO-Link, SSI, and Start/Stop, providing flexibility for integration into different control systems.

Main Features

• Ultra low designs for external mounting
• Multi-position measurement up to 8 magnets
• Outputs: Analog, CANbus, IO-Link, SSI, Start/Stop

Specifications

• Output Options and Performance:
  • Analog: Stroke Length 50…2540 mm (2…100 in.), Infinite resolution, Multi-position: 2, Status: Active
  • Start/Stop: Stroke Length 50…3000 mm (2…118 in.), Controller dependent resolution, Multi-position: 2, Status: Active
  • SSI: Stroke Length 50…2540 mm (2…100 in.), 20 µm resolution, Multi-position: -, Status: Active
  • CANopen: Stroke Length 50…2540 mm (2…100 in.), 10 µm resolution, Multi-position: 2, Status: Active
  • IO-Link: Stroke Length 50…2540 mm (2…100 in.), 5 µm resolution, Multi-position: 8, Status: Active

Certifications & Approvals

• CE
• UL/cUL
• EAC
• UKCA

Characteristics / Technical Specifications

• Compact profile for limited space applications
• External mounting capability
• Supports up to 8 magnets for multi-position measurement
• Multiple output interfaces: Analog, CANbus, IO-Link, SSI, Start/Stop
• Stroke length range: 50 to 3000 mm depending on output type
• High resolution: up to 5 µm (IO-Link)
• Active product status (actively promoted and supported)
