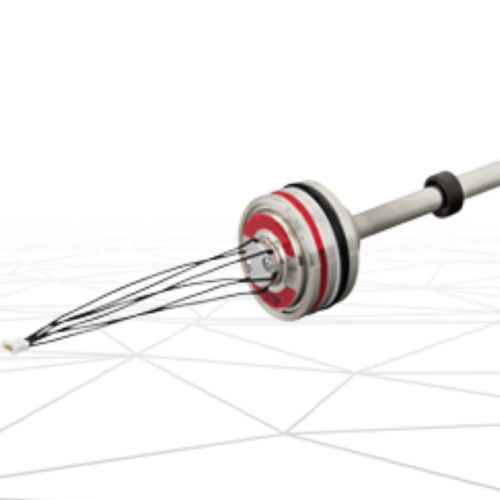

Linear position sensor EE

non-contact

The Temposonics® E-Series EE is a compact rod position sensor designed for full cylinder integration in industrial applications. This sensor features a pressure-resistant sensor rod and a compact housing, making it ideal for environments where space is limited and robust performance is required. It is engineered for direct integration into hydraulic or pneumatic cylinders and supports high operating temperatures. The E-Series EE provides analog output and offers infinite resolution for precise position measurement.

Main Features

• Pressure-resistant sensor rod
• Compact sensor housing
• Designed for cylinder integration
• High operating temperature
• Output: Analog

Specifications

• Output: Analog
• Stroke Length: 50...2540 mm (2…100 in.)
• Resolution: Infinite
• Status: Active - Product is actively promoted and supported

Available Documentation

• Data Sheet (EN)
• Operation Manual (EN)
• Technical Bulletin (EN)

Certifications & Approvals

• CE
• EAC
• UKCA

Characteristics / Technical Specifications

• Product Series: E-Series EE
• Output Type: Analog
• Stroke Length Range: 50 to 2540 mm (2 to 100 in.)
• Resolution: Infinite
• Sensor Housing: Compact, pressure-resistant rod
• Integration: Designed for full cylinder integration
• Operating Temperature: High
• Status: Active
• Certifications: CE, EAC, UKCA
