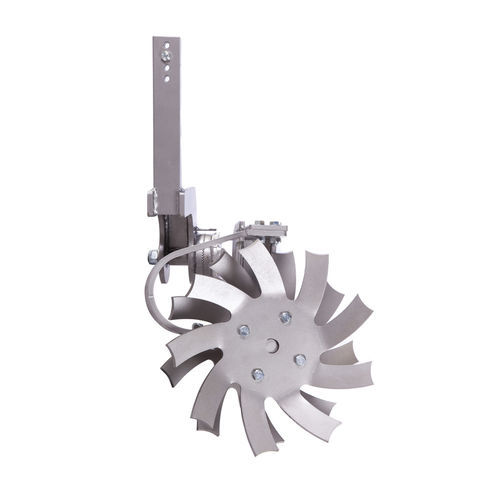

Mechanical weeder

mountedfor organic farminginter-row

Product overview

Tools for the TERRAL grape hoe weeder frame are non-powered implements designed to assist and guide the weeder chassis and to work or cultivate soil at the vine foot and in the interrow. They enable mechanical weeding and soil maintenance to reduce reliance on phytopharmaceutical products.

How it works

• The iron wheel stabilises the frame and allows working-height adjustment on hard or stony terrain.
• The tyre wheel stabilises the frame and adjusts working height in loose, non-abrasive soil.
• The coulter stabilises the frame and opens the soil before the grape hoe weeder by creating a small furrow and loosening the soil; multiple coulters can be fitted across the frame width.
• The triangular ploughshare covers a larger surface than a coulter but works less deeply; not suitable for very stony or heavy clay soils.
• The smooth disc stabilises the frame and cultivates soil; depending on orientation it may split soil without turning it and may not create a full furrow.
• The serrated disc works like the smooth disc but is better for clay soils because its teeth help soil shed from the tool.
• Lump breaker discs can guide and stabilise the frame or earth up soil at the vine foot; available with single or dual orientation and additional adjustment settings.

Mounting & compatibility

The tools for TERRAL grape hoe weeder frames mount via a 50 x 50 flange on the frame beam and are intended to be used in combination with grape hoe weeder tools.

Feed rate

Feed rate depends on the selected tool and soil conditions.

Technical specifications

• Attachment: fixed by 50×50 flange on the frame beam.
• Wheels (iron & tyre): available flanged, cranked, or hydraulic; mounted on sealed bearings; heavy-duty hubs with tapered bearings; tempered steel construction.
• Smooth disc: Ø350 mm; heavy-duty hub with tapered bearings; tempered steel.
• Serrated disc: Ø350 mm; adapted for clay soils; heavy-duty hub with tapered bearings; tempered steel.
• Lump breaker discs: available single or dual direction; Ø400 mm, 10 mm thickness for some versions; options include double disc and integrated scraper.
• Coulter: reversible and removable floor; tempered steel; mounting/axle dimension referenced as 50x30 on multiple items.
• Triangular ploughshare: removable floor; larger surface coverage with shallower work depth; tempered steel.
• Materials & wear resistance: tempered steel; Hardox available for high-wear components.
