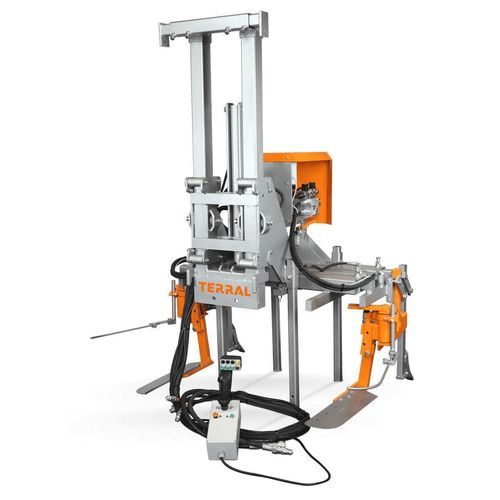

Tractor front linkage

for vinyard tractor

The front-mounted tool holder chassis is a front frame designed to carry TERRAL grape hoe weeders and a variety of soil-working tools for mechanical weeding and maintenance at the vine foot.

Overview:
The chassis provides a mounting solution for TERRAL weeders and soil-working implements used to clear and maintain the row (ploughing, soil stirring, lifting, mowing) to reduce competition between weeds and vines.

Use:
Intended for year-round maintenance of the vine foot, with peak use from March to July. Suitable for clay, limestone, sandy or stony soils; not recommended on very hard soils to avoid damage. The front frame allows cultivation of two half-rows simultaneously.

How it works:
The chassis is a tool holder that must be equipped with weeders and/or soil-working tools to perform tasks. It features a two-position lifting/lowering jack (fixed and floating) and a pivot to adapt to terrain and tool geometry.

Hitch:
Mounted exclusively to the front of the tractor. Can be combined with a TERRAL shredder or other soil-working implement.

Rear frame versions:

• Narrow frame
• Standard frame
• Wide frame

Standard features:

• Double-girder chassis made of heavy-duty moulded steel
• Heavy-gauge steel longerons
• Hydraulic chassis height adjustment
• Steel roller guides
• Pendulum chassis
• Floating jack for ground tracking
• Multiple mounting slots for a variety of tools
• Compatible with TERRAL grape hoe weeder
• Chassis adapted for 50x50 flanges
• Mechanical side gap adjustment
• Front tractor mounting bracket
• Storage struts

Options:

• Hydraulic gauge adjustment: simultaneous
• Hydraulic gauge adjustment: independent

Technical specifications:

• Type: Front-mounted tool holder / chassis for grape hoe weeders
• Compatibility: Designed to fit TERRAL grape hoe weeder and various soil-working tools
• Operation: Requires tools/weeder to perform work; chassis provides mounting, height adjustment and ground-tracking (floating jack)
• Lifting/lowering jack: 2 positions (fixed and floating)
• Capacity: Allows cultivation of 2 half-rows simultaneously
• Hitch: Front-of-tractor mounting only
• Soil types: Usable on clay, limestone, sandy and stony soils (not recommended on very hard soils)
• Chassis construction: Heavy-duty moulded steel double-girder with heavy-gauge longerons
