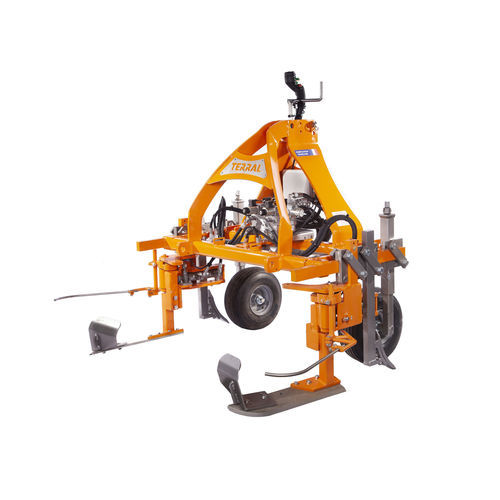

Multifunction tool carrier arm

cultivatingweederfor vineyards

The TERRAL rear frame is a tool holder engineered to accept TERRAL grape hoe weeders and soil-working implements for mechanical maintenance at the vine foot. It enables simultaneous cultivation of two half-rows and is designed to control weeds mechanically without using phytopharmaceutical products.

Product overview

• Function: Rear frames from TERRAL act as chassis and holders for grape hoe weeders and related soil-working tools to perform maintenance and mechanical weeding in vineyards.
• Use: Designed to operate year-round, with peak demand from March to July. Suitable for clay, limestone, sandy or stony soils; not recommended for very hard soils to avoid damage.
• How it works: The frame is a non-powered chassis that must be fitted with TERRAL weeders or other tools to perform cultivation or weeding tasks.
• Hitch: Can be fitted front or rear on the tractor depending on configuration; rear hitch recommended when combined with tillage implements due to increased load.
• Operating speed: Depends on the tool and soil conditions.

Technical specifications

• Rear frame versions: Classic frame (Narrow, Standard, Large); Reversible frame (Narrow, Standard, Large).
• Standard features:
  • Double-girder chassis manufactured from heavy-duty pressed steel
  • Heavy-gauge steel longerons
  • Reinforcing strut on both sides
  • Multiple mounting slots for a variety of tools
  • Specifically adapted to fit TERRAL grape hoe weeders
  • Chassis prepared for 50x50 flanges
  • Rear hitch compatible with CAT1 and CAT2
  • Mechanical lateral-gap adjustment
• Options:
  • Hydraulic gauge adjustment: simultaneous
  • Hydraulic gauge adjustment: independent
  • Pre-equipment for a hydraulic power pack
• Additional notes: Enables work on two half-rows simultaneously; the frame itself does not perform actions without mounted tools.
