Vine shoot rake CEK series

rotary

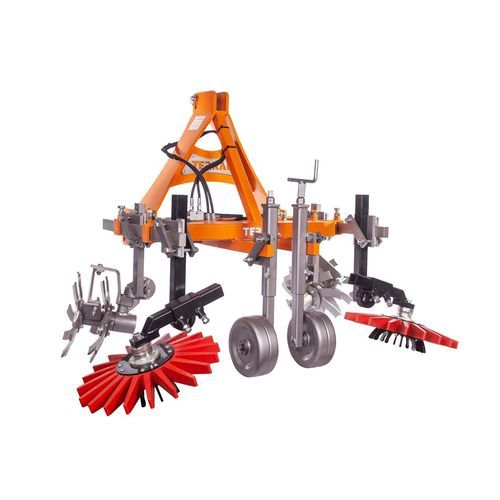

The TERRAL Grinder frame / Kress is a chassis designed to carry TERRAL crumbler discs and Kress tools for mechanical maintenance and weed control in the cavaillon (area under vine rows). It enables mechanical elimination of weeds without phytopharmaceutical products and can be mounted on the front or rear of a tractor. The frame is sized to work two half-rows simultaneously.

Product overview

• Function: Tool carrier specifically built to accept TERRAL crumbler discs and Kress implements for cavaillon maintenance and mechanical weeding.
• Use: Works with Kress crushing discs and tools; suitable for most soils (clay, limestone, sandy, stony). Not recommended on very hard soils to avoid damage to the machine and vines.
• Operation: The chassis must be equipped with crumbler discs and Kress tools to perform a complete operation: discs cut and project soil onto the cavaillon while Kress tools re-compact and stir soil close to the vines.
• Capacity: Designed to process two half-rows simultaneously for efficient inter-row maintenance.

Hitch and working parameters

• Mounting: front or rear tractor attachment; combinable with a TERRAL shredder or other tillage implements.
• Recommended forward speed: 6–10 km/h depending on soil hardness.

Options and mounting

• Hydraulic gauge adjustment: simultaneous (option).
• Hydraulic gauge adjustment: independent (option).
• Multiple mounting configurations: frame can be fitted front or rear and combined with other tools.

Tools / discs available

• 2-disc lump breaker: single orientation (option).
• 2-disc crumbling: double orientation (option).
• 3-disc lump breaker: single orientation (option).
• 3-disc crumbling: double orientation (option).
• Kress fingers available in Ø540 (red) and Ø700 (red).
• Iron wheel: flanged, cranked or hydraulic (option).
• Tire wheel: flanged, cranked or hydraulic (option).

Characteristics / technical specifications

• Frame versions: standard and wide.
• Standard frame: for vine widths from 1.80 m to 2.80 m.
• Wide frame: for vine widths from 2.00 m to 3.20 m.
• Standard equipment: double-girder frame in heavy-gauge profiled steel, large cross-section high-strength steel longitudinal members, central tie rod.
• Multiple slots ready to receive a variety of tools; horizontal arms adjustable in length to remain close to the tractor.
• Chassis suitable for 50x50 flanges; perfectly adapted to TERRAL crumbling discs and Kress tools.
• Recommended working speed: 6–10 km/h according to soil hardness.
