Mechanical weeder

mountedrotaryvineyard

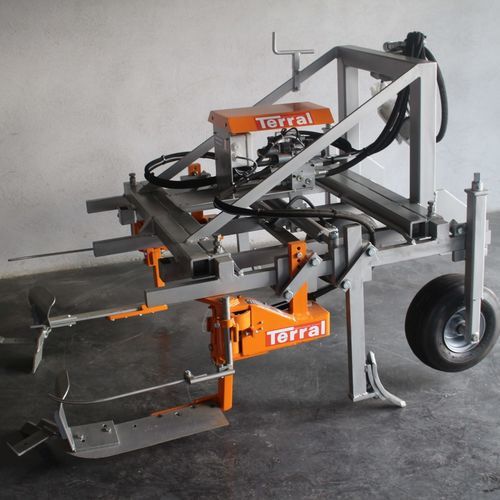

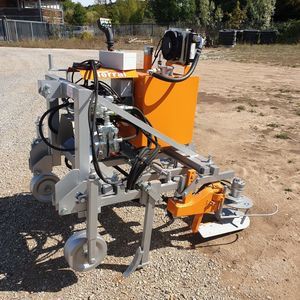

TERRAL weeder blades are vineyard attachments designed for mechanical maintenance and weed control at the vine foot, enabling rapid elimination of weeds without phytopharmaceutical products. They lift and uproot weeds to refresh the plant and can be adapted to a wide range of soils and chassis.

Product overview:

• Function: TERRAL weeder blades with rotating tools are used for mechanical maintenance and weeding of the soil at the vine foot, helping to eradicate weeds that compete with vines for soil resources.
• Use: Used year-round to keep the soil at the vine foot clear of shoots and weeds; highest demand from March to July. Suitable for clay, limestone, sandy or stony soils; not recommended on very hard soils. Typically used in pairs to work two half-rows simultaneously.
• How it works: A trunk-avoidance system (sensor + high-power double-acting cylinder) allows the blade and tools to retract on contact with the trunk and return to working position after passing, enabling soil work without touching the vine. Multiple settings adapt the machine to different vineyard configurations.

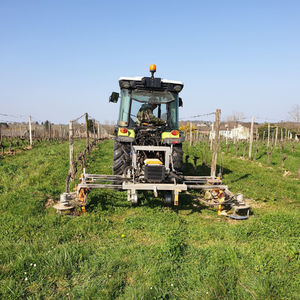

• Hitch: Can be mounted on a wide range of chassis or plough frames; usually mounted on a TERRAL frame (front or rear of the tractor). Compatible with other TERRAL vineyard tools (pruner, shredder, soil-working tools).
• Feed rate: Recommended working speed between 2 and 6 km/h (depending on ground type and soil cleanliness at the vine foot).

Technical characteristics / specifications:

• Reinforced hydraulic weeder module
• Flange mounting 50 x 50
• Mounting height adjustable to 4 positions
• Limit sensor
• High-power double-acting cylinder
• Electrohydraulic valve
• Joystick control with multiple functions:
  • forced-folding mechanism
  • forced drive function
  • simultaneous retraction on both sides
  • independent retraction on both sides
• Vine trunk bypass (avoidance) sensor
• 4-way adjustable sensor (2 rotations and 2 translations)
• Flow rate regulator for modulating blade speed
• Mounting plate compatible with all tools in the TERRAL grape hoe/weeder range
• 3 blade sizes available: 430 mm, 550 mm, 700 mm

Options (examples):

• Overpressure limiter to modulate blade force on the vine (safety in case of snagging; does not replace the sensor)
• Small mouldboards (to be mounted directly onto the blade)
• Rake tools (to be mounted directly on the blade)
• Vine stock cleaner (to be mounted directly onto the blade)
• Angled tools (to be mounted directly onto the blade)
