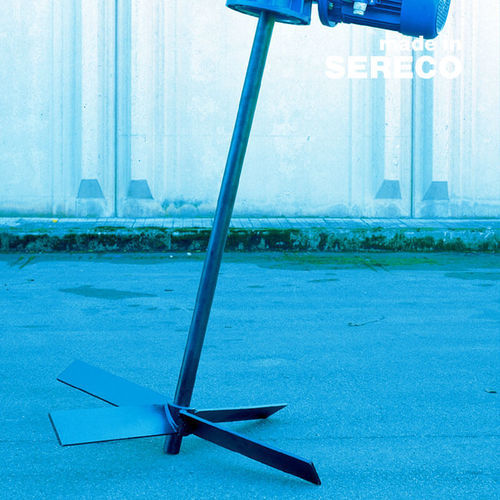

Vertical agitator E4PI

inclinedstainless steelelectrically-powered

DESCRIPTION
The electric agitator E4PI is designed for the dissolution of polyelectrolyte, lime and similar products used in water treatment processes. It comprises an electric motor, gearbox, lantern, shaft and an impeller manufactured from shaped steel sheet with four sloping blades joined by bolted or welded unions. The blade inclination promotes uniform agitation of the entire liquid mass, reduces shear on polymer chains and prevents formation of floating lumps. A variable speed drive can be fitted on request to adapt rotation speed to process needs. Standard construction is carbon steel; stainless steel and special protective covers are available on request.

CATEGORY / TYPOLOGY

• Category: Potable water
• Typology: Mixers

STRENGTHS

• Impeller geometry and rotation speed optimized for rapid dissolution of pulverised products
• Effective mixing even at high fluid viscosities
• Low energy consumption relative to mixing duty

TECHNICAL SPECIFICATIONS

• Model: E4PI
• Application: dissolution of polyelectrolyte, lime and similar additives for water treatment
• Main components: electric motor, gearbox, lantern, shaft, impeller
• Impeller: shaped steel sheet with four sloping blades; blades joined by bolted or welded unions
• Blade function: ensures whole-liquid-mass agitation, minimizes chain shear and prevents floating lumps
• Optional equipment: variable speed drive to adapt rotation speed
• Standard material: carbon steel
• Optional materials/protections: stainless steel, special protective covers on request
• Design focus: maximize dissolution efficiency and minimize energy consumption
