Water filter FSQ

panel

Category / Typology
POTABLE WATER / FILTERS

When to use it
Primary filtration unit for potable water and wastewater in civil and industrial applications. Used to reduce suspended solids and organic load to obtain an effluent suitable for reuse. The FSQ model uses quartz sand as standard filter medium; multi‑media layers available on request.

How it is made

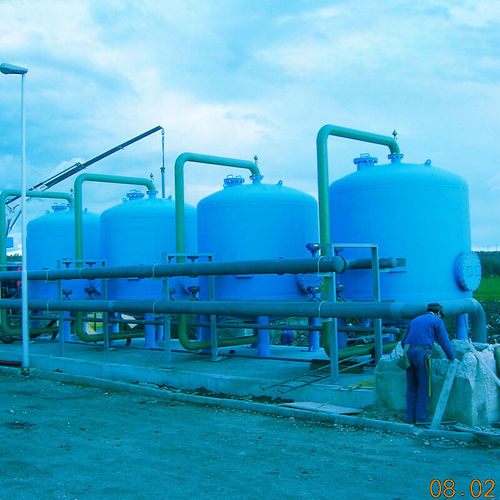

Vertical cylindrical pressure vessel equipped with bottom drain, support feet, manhole, lifting eyebolts, flanged inlet and outlet piping, internal nozzles and diffusers, pressure gauges and electro‑pneumatic control panel.

How it works
Filtration is performed by a discontinuous cyclic process: a differential pressure device stops the influent when a preset pressure difference is reached and triggers the automatic backwash cycle. Backwashing is carried out by introducing air and water from below through a base plate and nozzles, ensuring rapid and reliable restoration of the filter bed.

Strengths

• Pressure filtration
• Quartz sand filter bed (standard)
• Fully automatic operation
• Short backwash cycles
• Low maintenance requirements

Technical specifications

• Model: FSQ
• Filter medium: quartz sand (multi‑media on request)
• Filter body: vertical cylindrical pressure vessel
• Equipment: bottom drain, support feet, manhole, lifting eyebolts
• Piping: flanged inlet and outlet
• Backwash components: nozzles, diffusers; base plate supporting filter bed
• Control & instrumentation: differential pressure device, pressure gauges, electro‑pneumatic control panel
• Backwash method: automatic cyclic backwash with air and water introduced from below
• Operation: automatic, designed for fast restoration of the filter medium
• Maintenance: minimal maintenance requirements
