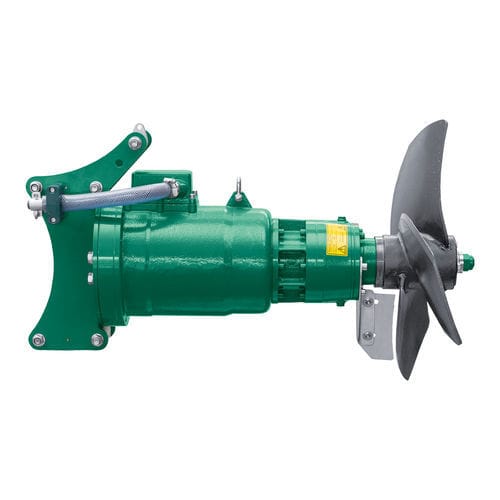

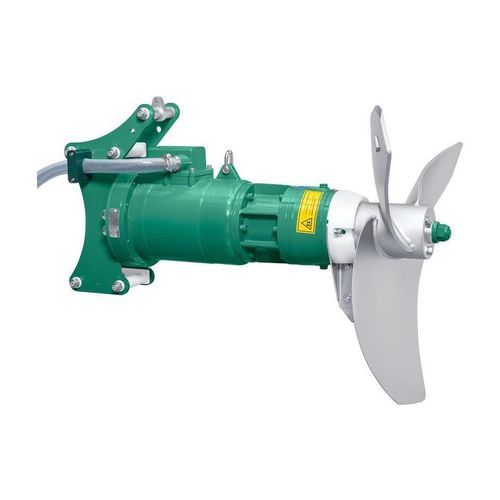

Horizontal agitator OPTIMIX 2G

submersibleelectrically-poweredeasy to install

Fluidically optimized submersible mixer.

• Propeller in hardened steel, optional galvanized or ss304.
• Mechanical seal of SiC/SiC.
• 3 seperated oil chambers for motor, gear and bearing housing
• Longlife-oil within the gear and bearing housing
• Guide mast support with 4 rollers for 80 x 80 / 100 x 100 / 120 x120 / 150 x 150 mm masts
• Galvanically isolated to the mast through ss316-rope (V4A)
• The cable is restistant against biomass
• Accessory: POM protection to minimize abrasion

Individual solutions:
The fluidically optimised submersible mixer OPTIMIX 2G is available with 4.0 / 9.0 / 11.0 and 15.0 kW motor power as well as with different agitator blade speeds.

Thanks to the unique SUMA modular design, different motor power ratings, gearboxes, agitator blades and mast sizes can be combined to create the perfect agitator for the customer. So-called direct drives without gearboxes are also possible.

Galvanic isolation:
The SUMA 4-roller guide with POM slide rails ensures smooth sliding up and down the mast and also galvanic isolation from the guide mast.

Optimum mixing result:
The three separate oil circuits for the motor, gearbox and bearing housing ensure safe mixing operation. A long-life oil with an extended oil change interval is used for the gearbox and the bearing housing. Sealing is done by means of the proven mechanical seal SiC/SiC in the bearing housing.

Control:
Either manual star-delta switches or automatic, time-controlled SUMA soft starters are available. All agitators can also be controlled via an external frequency converter.
