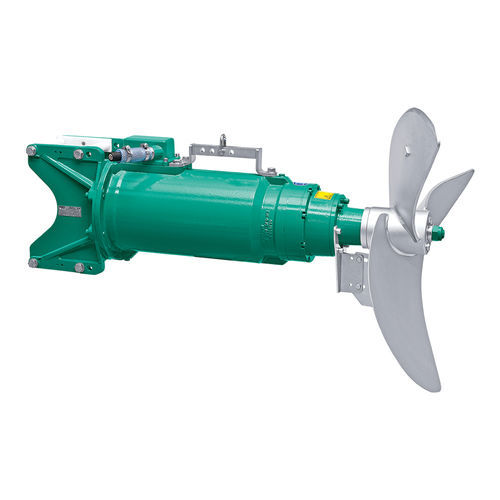

Horizontal agitator OPTIMIX 3G

submersibleelectrically-poweredself-propelled

Submersible motor for higher performance requirements

• Propeller in hardened steel, galvanized, ss304 or ss316
• Mechanical seal SiC/SiC
• 3 seperated oil chambers for motor, gear and bearing housing
• Longlife-oil within the gear and bearing housing
• Guide mast support with 4 rollers for 120 x120 / 150 x 150 mm mast
• Galvanically isolated to the mast through ss316-rope (V4A)
• The cable is restistant against biomass
• Accessory: POM protection to minimize abrasion

For higher power requirements, we offer the OPTIMIX 3G with 25 kW and maximum thrust.

Galvanic isolation:
The SUMA 4-roller guide and the special plastic slide rails for different mast sizes ensure smooth sliding up and down the mast and also galvanic isolation from the guide mast.

Optimum mixing results:
The three separate oil circuits for the motor, gearbox and bearing housing ensure safe operation of the agitator. Long-life oil with extended oil change intervals is used for the gearbox and the bearing housing.

Sealing system:
The sealing is done by means of the proven mechanical seal SiC/SiC in the bearing flange.

Control:
Either manual star-delta switches or automatic, time-controlled SUMA soft starters are available. All agitators can also be controlled via an external frequency converter.For higher power requirements, we offer the OPTIMIX 3G with 25 kW and maximum thrust.
