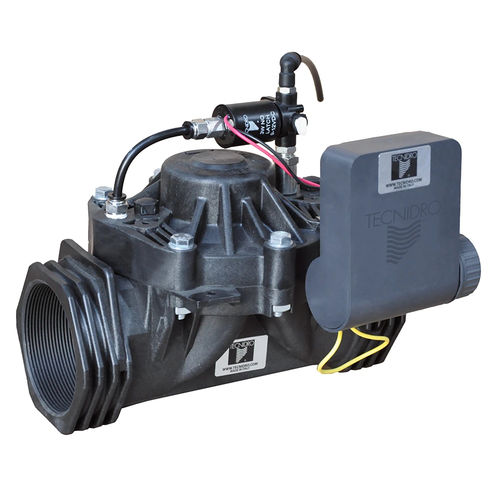

Irrigation solenoid valve IN/IP-PROG

3-way

The IN/IP-PROG electrohydraulic valve is an automatic on-off valve equipped with a battery-powered electronic programmer, allowing the valve to open and close according to a weekly schedule. This valve is ideal for irrigation systems or any application requiring automated flow control based on preset schedules. Technical Specifications: Solenoid Type: 3-way bistable Solenoid Material: Nylon Connections: Ø1/8” F BSP Nominal Pressure: 10 bar Voltage: 9-12V DC Protection Rating: IP66 Programmer (Model PROG): Assembly: Stainless steel support Operating Temperature: -10°C to 60°C Power Supply: 9V DC alkaline battery Protection Rating: IP67 Operating Principle: The IN/IP-PROG valve is controlled by a 3-way bistable solenoid (Model EL-BI) that opens and closes the valve based on the daily schedules stored in the PROG programmer. When the irrigation or flow program activates the solenoid, the water inside the control chamber is discharged, allowing the valve to open fully. When the scheduled irrigation or flow ends, the valve returns to a fully closed position. The PROG programmer offers multiple configuration options, allowing the selection of specific days and times for operation (e.g., daily opening, specific days, or multiple openings per day).
