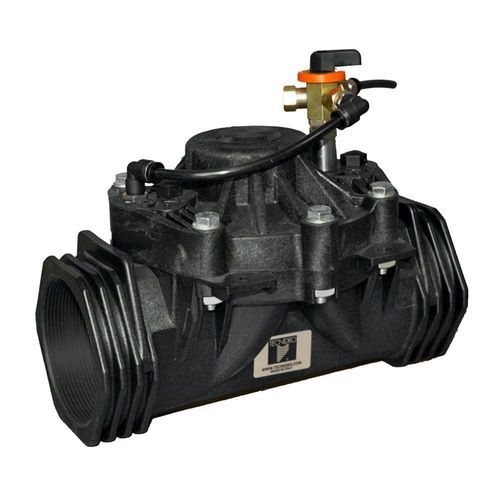

Control valve IN/IP-CM4V

shut-offballhydraulic

Overview:

The IN/IP-QP3B is a manual override On-Off hydraulic valve designed for manual opening and closing of a hydraulic line without external power. It is intended for local manual control of hydraulic flow and is supplied with a 4-way tap (control model CM4V) enabling manual selection of operating modes.

Technical specifications:

• Commercial model: IN/IP-QP3B
• Control model: CM4V (manual 4-way)
• Materials:
  • Control body: Brass
  • Sealing seat: Teflon
  • Ball: Stainless steel
• Connections:
  • Cover: Ø1/4" M BSP
  • Control ports (Open/Close/Auto): Ø1/8" F BSP

Operating principle:

• 4-way tap (Model CM4V): Allows selection between the three operating modes below.
• CLOSED: Connects the control chamber to upstream pressure, fully closing the valve.
• OPEN: Discharges the control chamber pressure to atmosphere, fully opening the valve.
• AUTO: Permits integration of hydraulic or electrohydraulic accessories to enable automatic operation.

Applications and integration:

• Local manual control and isolation for maintenance or emergency operations.
• Integration with hydraulic or electrohydraulic control systems in AUTO mode for automated control.
• Installation requires compatibility with specified BSP threaded ports.

Key characteristics / technical data:

• Function: Manual On-Off hydraulic override valve for local control
• Control model: CM4V (4-way manual)
• Materials: Brass control body, Teflon sealing seat, Stainless steel ball
• Connections: Cover Ø1/4" M BSP; Control ports Ø1/8" F BSP
• Operating modes: CLOSED, OPEN, AUTO
