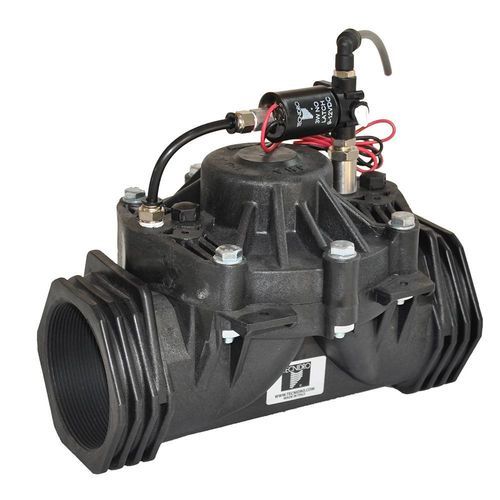

Irrigation solenoid valve IN/IP-EL

3-way

The IN/IP-EL electrohydraulic valve is an automatic shutoff valve designed to open and close a hydraulic flow using an electrohydraulic solenoid. It is suitable for automatic flow control applications such as irrigation systems and complex hydraulic circuits.

Operating Principle:
The valve is operated by a 3-way solenoid which controls opening and closing based on applied voltage. In the Normally Open (N.O.) configuration the solenoid keeps the valve closed when not powered and opens when energized. In the Normally Closed (N.C.) configuration the valve remains open without power and closes when the solenoid is energized. Bistable versions allow opening and closing with voltage impulses, maintaining position until a new impulse. In case of electrical failure the valve can be manually opened via an integrated handle (not available on the EL-BI bistable version).

Features / Technical specifications:

• Solenoid type: 3-way
• Standard configuration: Normally Open (N.O.) or Normally Closed (N.C.)
• Materials:
  • Solenoid body: Reinforced nylon (EL-BA version)
• Connections: Ø1/8″ F BSP
• Nominal pressure: 10 bar
• Operating voltage:
  • Standard version: 24V AC, 50-60 Hz
  • Bistable version (EL-BI): 9-12V DC
  • Bistable version (EL-BA): 6-24V DC
• Protection rating:
  • Solenoid EL: IP66
  • Solenoid EL-BA: IP66
• Orifice size (EL-BA solenoid): 2 mm (suitable for unfiltered water)
• Manual override: Integrated handle for manual opening (not available on EL-BI)
