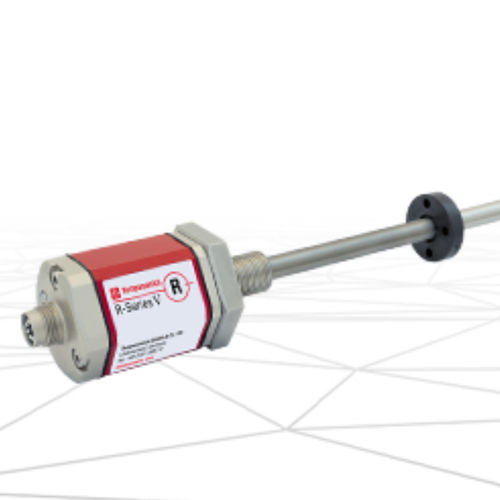

Linear position sensor RH5 series

The R-Series V RH5 is the new generation of high performance rod-style sensors designed for demanding in-cylinder applications. This sensor is backward compatible and features increased operating temperature up to +85 °C (+185 °F), enhanced shock and vibration resistance, and improved performance with high accuracy and reliability. It supports multi-position measurement with up to 30 magnets and offers a variety of outputs including Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, and EtherCAT®. Additional status information can be output via the TempoLink® smart assistant or TempoGate® smart assistant. Now also available with a flexible sensing element!

Main Features

• Backward compatible
• Increased operating temperature up to +85 °C (+185 °F)
• Increased shock & vibration resistance
• Improved performance with high accuracy & reliability
• Multi-position measurement with up to 30 magnets
• Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
• Output of additional status information via TempoLink® or TempoGate® smart assistant
• Available with flexible sensing element

Specifications

• PROFINET: Stroke Length 25…7620 mm (1…300 in.), Resolution 0.5 µm, Multi-Position up to 30 positions
• EtherNet/IP™: Stroke Length 25…7620 mm (1…300 in.), Resolution 1 µm, Multi-Position up to 20 positions
• SSI: Stroke Length 25…7620 mm (1…300 in.), Resolution 0.1 µm, Multi-Position not available
• POWERLINK: Stroke Length 25…7620 mm (1…300 in.), Resolution 0.5 µm, Multi-Position up to 30 positions
• EtherCAT®: Stroke Length 25…7620 mm (1…300 in.), Resolution 0.5 µm, Multi-Position up to 30 positions
• Analog: Stroke Length 25…7620 mm (1…300 in.), Resolution 16 bit, Multi-Position up to 2 positions

Certifications & Approvals

• CE
• UL/CUL
• EAC
• UKCA

Characteristics / Technical Specifications

• Product type: High performance rod-style position sensor
• Application: Demanding in-cylinder applications
• Operating temperature: Up to +85 °C (+185 °F)
• Shock & vibration resistance: Increased
• Accuracy: High
• Reliability: High
• Multi-position capability: Up to 30 magnets (depending on output type)
• Output options: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
• Status information: Available via TempoLink® or TempoGate® smart assistant
• Flexible sensing element: Available
• Stroke length: 25…7620 mm (1…300 in.)
• Resolution: Up to 0.1 µm (depending on output type)
