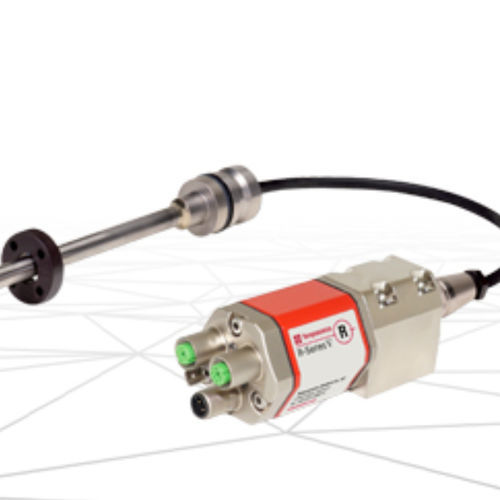

Linear position sensor V RDV

The new generation of high performance sensors with detached electronics for hydraulic cylinders and machine manufacturing.

• Space saving installation due to detached sensor electronics
• Different mounting options for housing
• Backward compatible
• Multi-position measurement with up to 30 magnets
• Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
• Output of additional status information of the position sensor via the TempoLink® smart assistant or TempoGate® smart assistant

Specifications

• Output: PROFINET, EtherNet/IP™, SSI, POWERLINK, EtherCAT®, Analog
• Stroke Length: 25…5080 mm (1…200 in.)
• Resolution: PROFINET 0.5 µm, EtherNet/IP™ 1 µm, SSI 0.1 µm, POWERLINK 0.5 µm, EtherCAT® 0.5 µm, Analog 16 bit
• Multi-Position: Up to 30 positions (PROFINET, POWERLINK, EtherCAT®), Up to 20 positions (EtherNet/IP™), Up to 2 positions (Analog), Not available for SSI
• Status: Active - Product is actively promoted and supported
