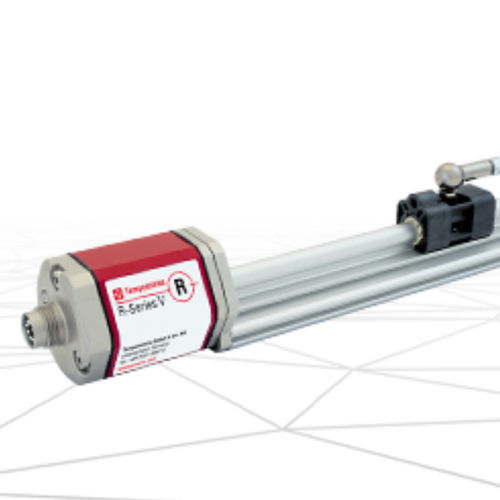

Linear position sensor V RP5

The Temposonics® R-Series V RP5 is a new generation of high performance profile-style position sensors designed for demanding, externally mounted applications. These sensors are backward compatible and feature increased operating temperature up to +85 °C (+185 °F), enhanced shock and vibration resistance, and improved performance with high accuracy and reliability. They support multi-position measurement with up to 30 magnets and offer a variety of output options including Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, and EtherCAT®. Additional status information can be output via the TempoLink® smart assistant or TempoGate® smart assistant.

Main Features

• Backward compatible for easy integration into existing systems
• Increased operating temperature up to +85 °C (+185 °F)
• Enhanced shock and vibration resistance for robust industrial use
• High accuracy and reliability for demanding applications
• Multi-position measurement capability with up to 30 magnets
• Multiple output options: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
• Output of additional status information via TempoLink® or TempoGate® smart assistants

Technical Specifications

• Output types: PROFINET, EtherNet/IP™, SSI, POWERLINK, EtherCAT®, Analog
• Stroke Length: 25…6350 mm (1…250 in.)
• Resolution: PROFINET/POWERLINK/EtherCAT®: 0.5 µm, EtherNet/IP™: 1 µm, SSI: 0.1 µm, Analog: 16 bit
• Multi-Position: Up to 30 positions (PROFINET/POWERLINK/EtherCAT®), Up to 20 positions (EtherNet/IP™), Up to 2 positions (Analog), Not available for SSI
• Status: Active - Product is actively promoted and supported
