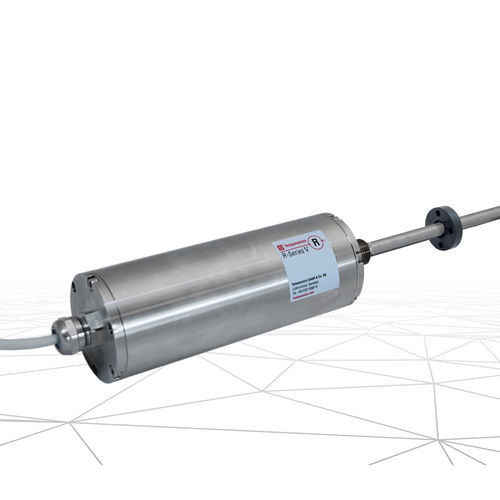

Linear position sensor V RM5

The extremely robust RM5 sensor with super shield housing ensures long-term linear position measurement in the harshest environments.

Key Features

• Super shield housing with IP68/IP69 protection against ingress of dust and water
• Improved performance with high accuracy and reliability
• Multiple output options: Analog, SSI, EtherCAT®, EtherNet/IP™, POWERLINK, PROFINET
• Output of additional status information of the position sensor via the TempoLink® smart assistant or TempoGate® smart assistant

Output Options and Specifications

• SSI: Stroke Length 25…7615 mm (1…299.8 in.), Resolution 0.1 µm, Multi-Position: -, Status: Active
• Analog: Stroke Length 25…7615 mm (1…299.8 in.), Resolution 16 bit, Multi-Position: Up to 2 positions, Status: Active
• PROFINET: Stroke Length 25…7615 mm (1…299.8 in.), Resolution 0.5 µm, Multi-Position: Up to 30 positions, Status: Active
• POWERLINK: Stroke Length 25…7615 mm (1…299.8 in.), Resolution 0.5 µm, Multi-Position: Up to 30 positions, Status: Active
• EtherCAT®: Stroke Length 25…7615 mm (1…299.8 in.), Resolution 0.5 µm, Multi-Position: Up to 30 positions, Status: Active
• EtherNet/IP™: Stroke Length 25…7615 mm (1…299.8 in.), Resolution 1 µm, Multi-Position: Up to 20 positions, Status: Active

Characteristics / Technical Specifications

• Product type: Linear position sensor
• Housing: Super shield, IP68/IP69
• Output interfaces: Analog, SSI, EtherCAT®, EtherNet/IP™, POWERLINK, PROFINET
• Stroke length: 25…7615 mm (1…299.8 in.)
• Resolution: Up to 0.1 µm (depending on output)
• Multi-position capability: Up to 30 positions (depending on output)
• Status: Active (product is actively promoted and supported)
• Additional status information output via TempoLink® or TempoGate® smart assistant
