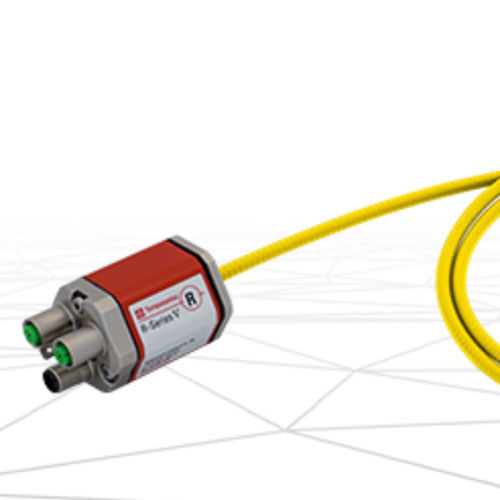

Linear position sensor V RF5

The Temposonics® R-Series V RF5 is an improved flexible position sensor designed for superior performance in applications requiring stroke lengths up to 20,000 mm. This sensor features a flexible sensor rod, making it convenient for shipping and installation in long stroke applications. It is backward compatible and supports multi-position measurement with up to 30 magnets, making it suitable for complex automation and industrial environments. The RF5 offers a wide range of output options including Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, and EtherCAT®. Additional status information can be accessed via the TempoLink® and TempoGate® smart assistants.

Main Features

• Improved flexible sensor rod for enhanced durability and installation flexibility
• Convenient shipping for long stroke lengths
• Backward compatibility with previous systems
• Multi-position measurement capability with up to 30 magnets
• Multiple output options: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
• Output of additional status information via TempoLink® and TempoGate® smart assistants

Technical Specifications

• Output Options: PROFINET, EtherNet/IP™, SSI, POWERLINK, EtherCAT®, Analog
• Stroke Length: 150…20,000 mm (all output types)
• Resolution: PROFINET: 0.5 µm; EtherNet/IP™: 1 µm; SSI: 0.1 µm; POWERLINK: 0.5 µm; EtherCAT®: 0.5 µm; Analog: 16 bit
• Multi-Position Measurement: Up to 30 positions (PROFINET, POWERLINK, EtherCAT®), Up to 20 positions (EtherNet/IP™), Up to 2 positions (Analog), Not available for SSI
• Status: Active - Product is actively promoted and supported

Certifications

• CE
• UL/CUL
• EAC
• UKCA
