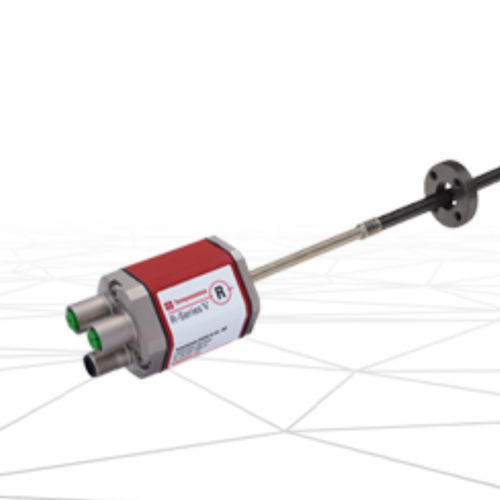

Linear position sensor RFV series

The Temposonics® R-Series V RFV is a flexible, high-performance position sensor designed for long stroke lengths up to 20,000 mm. This sensor features a flexible sensor rod, making it ideal for applications requiring convenient shipping and installation for extended lengths. It is backward compatible and supports multi-position measurement with up to 30 magnets, offering versatile integration into various industrial systems. The R-Series V RFV provides a wide range of output options including Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, and EtherCAT®. Additional status information can be output via the TempoLink® smart assistant or TempoGate® smart assistant.

Main Features

• Flexible sensor rod for long stroke applications
• Convenient shipping for long stroke lengths
• Backward compatibility with previous systems
• Multi-position measurement capability (up to 30 magnets)
• Multiple output options: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
• Output of additional status information via TempoLink® or TempoGate® smart assistants

Technical Specifications

• Output types: PROFINET, EtherNet/IP™, SSI, POWERLINK, EtherCAT®, Analog
• Stroke length: 150…20,000 mm (6…787 in.)
• Resolution: PROFINET/POWERLINK/EtherCAT®: 0.5 µm; EtherNet/IP™: 1 µm; SSI: 0.1 µm; Analog: 16 bit
• Multi-position capability: Up to 30 positions (PROFINET/POWERLINK/EtherCAT®), up to 20 positions (EtherNet/IP™), up to 2 positions (Analog), not available for SSI
• Status: Active - Product is actively promoted and supported

Certifications & Approvals

• CE
• UL/CUL
• EAC
• UKCA
