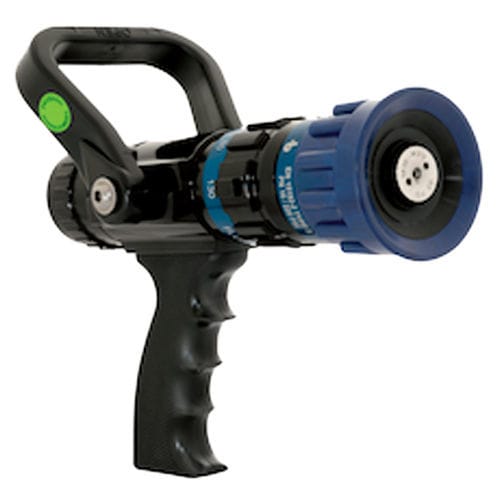

Stainless steel nozzle Viper Blue Devil®

hollow-conesolid-stream spray

Overview
The Viper Blue Devil® is a selectable-flow firefighting nozzle designed for fixed and mobile fire suppression applications. It integrates the patented RYLSTATIC® fog pattern for uniform fog distribution and reduced friction loss, and offers preset flow positions including a FLUSH mode for debris clearing.

Key Features

• Selectable flow nozzles with an easy-grip selector ring and preset positions for rapid adjustment in operational conditions.
• High-quality shut-off valve with dual seats and dual-driven shaft to reduce the effects of water hammer and extend service life.
• Patented RYLSTATIC® system producing a uniform water fog with smaller droplets and lower friction loss for a wider and more consistent fog shield.
• Designed and manufactured to meet NFPA 1964 and UNE EN 15182-2 type 3 requirements.

Flow Settings
Flow rate is selected via an easy-grip ring with preset detents and a raised lug to identify maximum flow in low-visibility conditions. The FLUSH mode clears debris from the nozzle to prevent pattern disruption or flow reduction.

Stream Pattern
Stream pattern is adjusted by rotating the bumper between Full Fog (Protection), Narrow Fog and Straight Stream. A raised lug identifies Narrow Fog in low visibility. The Viper Blue Devil® incorporates the patented RYLSTATIC® fog system for consistent droplet size and reduced friction loss. Traditional spinning teeth are available as an option.

Shut Off Valve
The shut-off valve features a dual seat and dual-driven shaft for improved resistance to water hammer and reliable operation. Valve operation is smooth via an OPEN/CLOSE handle. Most sizes use a stainless steel ball; the 2 1/2” size uses a high-performance polymer resin ball.

Stainless Steel Inlet Screen
An inlet stainless steel screen prevents debris entry into the nozzle, reducing the risk of operational damage or failure.

Ring Markings
Flow selector and pattern ring markings are laser-engraved on anodized aluminum for long-term readability and durability.

Lot Number
Each nozzle is marked with a lot number for traceability and quality control.

Inlet Options
Standard thread options:

• NST/NH Female
• NPSH/IPT Female
• BSP Female

Available upon request with couplings: STORZ, BARCELONA UNE 23400, DSP/GUILLEMIN, UNI, NOR, GOST and MACHINO. The swivel inlet allows continuous rotation while connected to the supply hose.

Foam
The Viper Blue Devil® can be configured as a foam nozzle with an optional foam tube and is compatible with pre-mixed solutions or inline eductors.

Approvals and Standards
Complies with NFPA 1964 and is manufactured in an ISO 9001 accredited facility. EN15182-1 & EN15182-2 type 3 certificates are available on request.

Service and Maintenance
Minimal maintenance is required when the nozzle is flushed with clean water after use with foam or contaminated water. Service kits are available to support field maintenance.

Technical specifications

• Brand: TIPSA
• Model / Series: Viper Blue Devil®
• Selectable flow with preset positions and FLUSH mode
• Patented RYLSTATIC® fog pattern technology
• Dual-seat valve with dual-driven shaft
• Stainless steel ball valve (polymer resin ball for 2 1/2" size)
• Stainless steel inlet screen
• Laser-engraved anodized aluminum ring markings
• Lot number marking for traceability
• Standard inlet threads: NST/NH Female, NPSH/IPT Female, BSP Female
• Optional couplings on request: STORZ, BARCELONA UNE 23400, DSP/GUILLEMIN, UNI, NOR, GOST, MACHINO
• Swivel inlet for continuous rotation
• Foam capable with optional foam tube (compatible with pre-mix and inline eductors)
• Compliance: NFPA 1964; EN15182-1 & EN15182-2 type 3 (certificates on request)
• Manufactured in an ISO 9001 accredited facility
