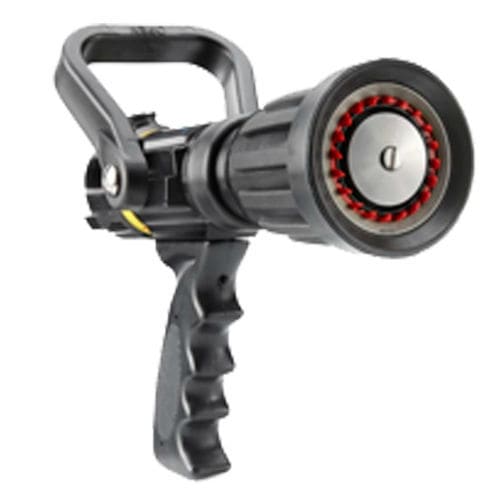

Plastic nozzle VIPER® ST

solid-stream spray

Short description
Durable, lightweight industrial firefighting spray nozzle designed for basic extinguishing duties. Constructed in hard-coated aluminium with a protective rubber bumper and polyamide/fiberglass reinforced spinning teeth to deliver a consistent fog or straight stream. Available in tip-only, with pistol grip, or with shut-off valve configurations.

Key features

• Basic spray nozzle optimized for industrial firefighting applications.
• Solid rubber bumper for impact protection.
• Spinning teeth reinforced with polyamide and fiberglass to produce a consistent fog pattern.
• Hard-coated aluminium body: lightweight and corrosion-resistant.
• Multiple configurations: tip-only, pistol-grip, shut-off valve.

Settings
Twist-type shut-off tip offering selectable patterns: straight stream, narrow fog and wide fog. A FLUSH mode clears debris from the nozzle to prevent pattern disruption or flow reduction.

Stream pattern
The spray pattern is adjusted by rotating the bumper, allowing selection from the widest fog (Full Fog – Protection) to narrow fog and straight stream. Spinning teeth maintain droplet formation for effective cooling and suppression.

VIPER shut-off valve option
The VIPER shut-off valve requires minimal maintenance and is operated by a lever with OPEN/CLOSE positions for rapid control during operations.

Markings
High-visibility reflective labels applied to anodized aluminium for easy reading under low-light conditions.

Foam
Viper ST can be used as a foam nozzle when combined with inline eductors and low-expansion foam tubes; compatibility depends on eductor and proportioning setup.

Inlet options
Standard thread options:

• NST/NH female
• NPSH/IPT female
• BSP male/female

Couplings available on request: STORZ, BARCELONA UNE 23400, DSP/GUILLEMIN, UNI, NOR and GOST. A rotating inlet with pistol-grip or shut-off valve options allows continuous rotation while connected to the supply hose.

Batch number
Pistol-grip and shut-off valve variants are marked with a batch number before leaving the factory for traceability.

Service and maintenance
Minimal maintenance required when the unit is flushed with clean water after use with foam or contaminated water. Service kits are available. TIPSA reserves the right to modify specifications without prior notice to meet evolving standards.

Characteristics / technical specifications

• Brand: TIPSA
• Model: Viper ST
• Material: hard-coated aluminium body
• Protection: solid rubber bumper
• Spinning teeth: polyamide reinforced with fiberglass
• Configurations: tip-only, pistol-grip, shut-off valve
• Stream types: straight stream, narrow fog, wide fog (adjustable)
• FLUSH mode: ejects debris to avoid pattern interruption or flow reduction
• Handling options: pistol-grip or lever-operated shut-off valve (OPEN/CLOSE)
• Marking: high-visibility reflective labels on anodized aluminium
• Foam compatibility: usable with inline eductors and low-expansion foam tubes
• Inlets (standard threads): NST/NH female; NPSH/IPT female; BSP male/female
• Couplings available on request: STORZ; BARCELONA UNE 23400; DSP/GUILLEMIN; UNI; NOR; GOST
• Rotating inlet: allows continuous rotation when connected to supply hose
• Traceability: batch number marking on certain configurations
• Maintenance: flush with clean water after foam/contaminated use; service kits available
