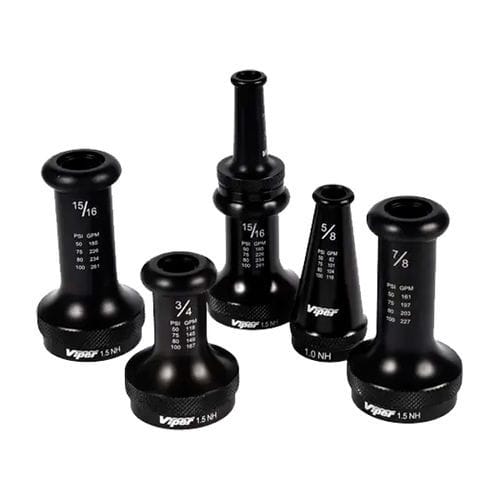

Nozzle Viper Bore

Overview
The nozzles that get you to the seat of the fire.

VIPER Shut Off (with Pistol grip)
Reference | Bore Size (mm / inch) | Waterway Size (inch) | Thread | Inlet Female – Outlet Male (mm / inch) | Weight (kg / lbs)
I218220 | 25.4 mm / 1" | 1" | NH | 25 – 25 mm / 1" – 1" | 0.98 kg / 2.16 lbs
I218251 | 25.4 mm / 1" | 1" | NH | 38 – 38 mm / 1 1/2" – 1 1/2" | 1.04 kg / 2.30 lbs
I218222 | 25.4 mm / 1" | 1" | NPSH | 25 – 25 mm / 1" – 1" | 0.98 kg / 2.16 lbs
I218223 | 25.4 mm / 1" | 1" | NPSH | 38 – 38 mm / 1 1/2" – 1 1/2" | 1.04 kg / 2.30 lbs
I230023 | 25.4 mm / 1" | 1 3/8" | NH | 38 – 38 mm / 1 1/2" – 1 1/2" | 1.53 kg / 3.38 lbs
I230024 | 22.2 mm / 7/8" | 1 3/8" | NH | 38 – 38 mm / 1 1/2" – 1 1/2" | 1.53 kg / 3.38 lbs
I230025 | 23.8 mm / 15/16" | 1 3/8" | NH | 38 – 38 mm / 1 1/2" – 1 1/2" | 1.53 kg / 3.38 lbs
I230058 | 25.4 mm / 1" | 1 3/8" | NH | 64 – 38 mm / 2 1/2" – 1 1/2" | 1.74 kg / 3.84 lbs
I230059 | 22.2 mm / 7/8" | 1 3/8" | NH | 64 – 38 mm / 2 1/2" – 1 1/2" | 1.74 kg / 3.84 lbs
I230060 | 23.8 mm / 15/16" | 1 3/8" | NH | 64 – 38 mm / 2 1/2" – 1 1/2" | 1.74 kg / 3.84 lbs

VIPER Shut Off (without Pistol grip)
Reference | Bore Size (mm / inch) | Waterway Size (inch) | Thread | Inlet Female – Outlet Male (mm / inch) | Weight (kg / lbs)
I230021 | 25.4 mm / 1" | 1" | NH | 25 – 25 mm / 1" – 1" | 0.88 kg / 1.93 lbs
I230022 | 25.4 mm / 1" | 1" | NH | 38 – 38 mm / 1 1/2" – 1 1/2" | 0.94 kg / 2.07 lbs
I230035 | 25.4 mm / 1" | 1 3/8" | NH | 38 – 38 mm / 1 1/2" – 1 1/2" | 1.43 kg / 3.14 lbs
I230036 | 22.2 mm / 7/8" | 1 3/8" | NH | 38 – 38 mm / 1 1/2" – 1 1/2" | 1.43 kg / 3.14 lbs
I230037 | 23.8 mm / 15/16" | 1 3/8" | NH | 38 – 38 mm / 1 1/2" – 1 1/2" | 1.43 kg / 3.14 lbs
I230061 | 25.4 mm / 1" | 1 3/8" | NH | 64 – 38 mm / 2 1/2" – 1 1/2" | 1.64 kg / 3.62 lbs
I230062 | 22.2 mm / 7/8" | 1 3/8" | NH | 64 – 38 mm / 2 1/2" – 1 1/2" | 1.64 kg / 3.62 lbs
I230063 | 23.8 mm / 15/16" | 1 3/8" | NH | 64 – 38 mm / 2 1/2" – 1 1/2" | 1.64 kg / 3.62 lbs
I211325 | 35.0 mm / 1 3/8" | 1 3/8" | NH | 64 – 38 mm / 2 1/2" – 1 1/2" | 2.82 kg / 6.22 lbs

Notes
Product family: VIPER Bore nozzles. Tagline on page: "The nozzles that get you to the seat of the fire." Manufacturer: TIPSA.

Technical characteristics / specifications

• Product family: VIPER Bore nozzles (VIPER)
• Available configurations: Shut Off with pistol grip and without pistol grip
• Bore sizes: 22.2 mm, 23.8 mm, 25.4 mm, 35.0 mm (inch equivalents provided)
• Waterway sizes: 1", 1 3/8"
• Thread types: NH and NPSH (as specified per reference)
• Inlet / outlet combinations: 25–25, 38–38, 64–38 mm (with inch equivalents)
• Weights provided per reference in kg and lbs
• References covered (examples): I218220, I218251, I218222, I218223, I230023, I230024, I230025, I230058, I230059, I230060, I230021, I230022, I230035, I230036, I230037, I230061, I230062, I230063, I211325
