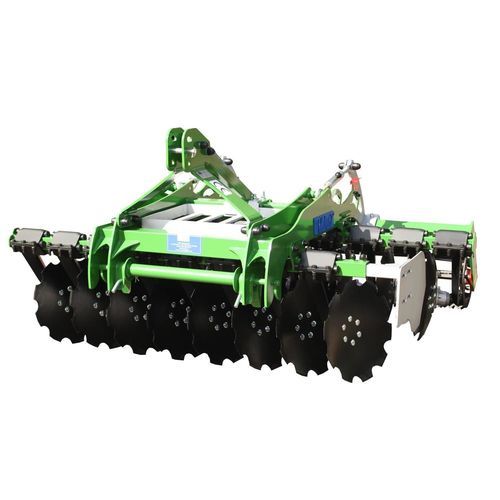

Mounted disc harrow SIMPLY series

Standard equipment: - Two rows of discs with rubber shock absorption - 510 mm diameter discs with maintenance-free hubs with seals - Rear, tubular roller with bearing (self-aligning ball bearing UCF 208) Ø 510 mm or string roller Ø 440 mm - Automatic draw bar - Disc track 800 mm - Basket for weight Optional equipment: - Side screens - Levelling scraper - Ring roller Ø 500 mm - Route lights Model specifications: Simply 120: Width 1.2 m, 8 discs, Weight 500 kg, Power 30-40 HP Simply 140: Width 1.4 m, 10 discs, Weight 550 kg, Power 35-45 HP Simply 160: Width 1.6 m, 12 discs, Weight 600 kg, Power 40-50 HP Simply 180: Width 1.8 m, 14 discs, Weight 650 kg, Power 50-60 HP Simply 200: Width 2.0 m, 16 discs, Weight 700 kg, Power 60-70 HP Information about the rollers: - Tubular Ø 510 mm - String Ø 440 mm - Ring Ø 500 mm Technical specifications / Features: - Working width: 1.2–2.0 m - Number of discs: 8–16 (depending on model) - Disc diameter: 510 mm - Weight: 500–700 kg (depending on model) - Required tractor power: 30–70 HP - Standard rollers: Tubular Ø 510 mm or String Ø 440 mm - Optional roller: Ring Ø 500 mm - Automatic draw bar - Maintenance-free hubs with seals - Rear roller with self-aligning ball bearing UCF 208 - Disc track: 800 mm - Basket for weight
