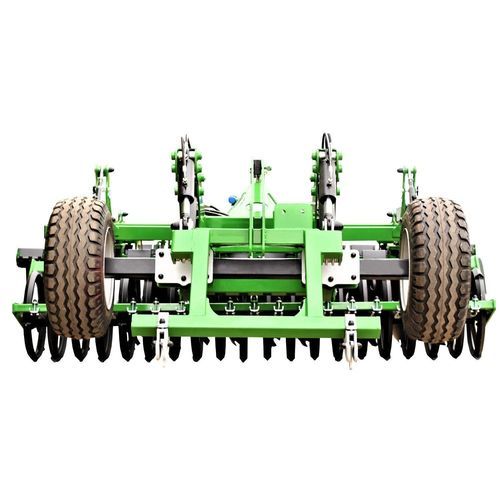

Towed disc harrow Astat 400

tandemfoldable

Standard equipment: - welded hub, - two disc rows of discs with rubber shock absorption, - 560 mm diameter discs with maintenance-free hubs on cone roller bearings, - tandem roof roller Ø 500mm, - foldable, adjustable side discs, - reinforced hitch with possibility of trailing on category II and III hooks, - traction device, - traction device with hydropack (+300 kg) - disc track 920 mm, - wheels 340/55-16 Optional equipment: - screwed hub, disc Ø 560 mm - screwed hub, disc Ø 610 mm - side screens, - floating side screens, - hydraulic working depth adjustment, - route lights, - traction device with the option of attaching a seeder, - slidable discs, - hydraulic seeder coupler, - electro-hydraulic block, - chisel aerator (Astat 300 with U.T.), - wheels 400/60-15.5, - optional rollers (table). Model specifications: Width (m) | Number of discs | Weight (kg) | Power (HP) - Astat 220: 2.2 | 14 | 2150 | 70-90 - Astat 250: 2.5 | 18 | 2300 | 80-100 - Astat 270: 2.7 | 22 | 2420 | 90-110 - Astat 300: 3.0 | 24 | 2500 | 100-120 - Astat 350: 3.5 | 28 | 2780 | 110-140 - Astat 400: 4.0 | 32 | 2900 | 130-160 Information about the rollers: - V Ring tandem Ø 500 mm ✔ - Ø 600 mm ✔ - V Ring-bar tandem Ø 500 mm ✔ - Ø 600 mm ✔ - Channel-bar tandem Ø 520 mm ✔ - Tee-bar tandem Ø 600 mm ✔ - Disc tandem Ø 600 mm ✔ - Ring tandem Ø 500 mm ✔ Technical characteristics / specifications: - Product: ASTAT with traction device - Brand: Tolmet - Available working widths: 2.2 m, 2.5 m, 2.7 m, 3.0 m, 3.5 m, 4.0 m - Number of discs: 14, 18, 22, 24, 28, 32 (depending on model) - Disc diameter: 560 mm (standard), 610 mm (optional) - Roller diameter: 500 mm, 520 mm, 600 mm (depending on roller type) - Weight: 2150 kg to 2900 kg (depending on model) - Required tractor power: 70-160 HP (depending on model) - Wheels: 340/55-16 (standard), 400/60-15.5 (optional) - Shock absorption: rubber - Hitch: reinforced, category II and III - Hydraulic and electro-hydraulic options available
