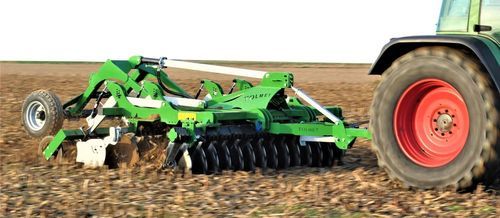

Towed disc harrow TENES 300

with hydraulic adjustmentwith roller

Standard equipment: - welded hub, - possibility to adjust the spacing between the discs: 960 mm – 1100 mm – 1240 mm, - two disc rows of discs with rubber shock absorption, - 560 mm diameter discs with maintenance-free hubs on cone roller bearings, - rear, tubular roller with bearing Ø 510mm or string roller Ø 440mm, - foldable, adjustable side discs, - reinforced hitch with possibility of trailing on category II and III hooks, - traction device, - wheels 340/55-16. Optional equipment: - screwed hub, disc Ø 560 mm - screwed hub, disc Ø 610 mm - side screens, - floating side screens, - hydraulic working depth adjustment, - route lights, - traction device with the option of attaching a seeder, - hydraulic seeder coupler, - electro-hydraulic block, - wheels 400/60-15.5. - optional rollers (see table below). Model specifications: Model | Width (m) | Number of discs | Weight (kg) | Power requirement (HP) TENES 270 | 2.7 | 22 | 2540 | 100-120 TENES 300 | 3.0 | 24 | 2620 | 110-130 TENES 350 | 3.5 | 28 | 2900 | 130-150 TENES 400 | 4.0 | 32 | 3020 | 150-170 Information about the rollers: Type | Diameter | Availability Tubular | Ø 510 mm / Ø 600 mm | ✔ String | Ø 440 mm / Ø 520 mm | ✔ V ring | Ø 500 mm / Ø 600 mm | ✔ V Ring bar | Ø 500 mm / Ø 600 mm | ✔ Ring | Ø 500 mm | ✔ Channel bar | Ø 520 mm / Ø 600 mm | ✔ Tee-bar | Ø 600 mm | ✔ Packer | Ø 510 mm | ✔ Crosskill | Ø 380 mm / Ø 550 mm | ✔ Disc | Ø 600 mm | ✔ Rubber | Ø 500 mm | ✔ Spiral | Ø 500 mm | ✔ Other tandem and mulching rollers available on request. Technical characteristics / specifications: - Model: TENES with traction device - Available working widths: 2.7 m, 3.0 m, 3.5 m, 4.0 m - Number of discs: 22, 24, 28, 32 (depending on model) - Disc diameter: 560 mm (standard), 610 mm (optional) - Weight: 2540 kg – 3020 kg (depending on model) - Power requirement: 100-170 HP (depending on model) - Roller types: tubular, string, V ring, V ring bar, ring, channel bar, tee-bar, packer, crosskill, disc, rubber, spiral, tandem and mulching rollers (see table) - Wheels: 340/55-16 (standard), 400/60-15.5 (optional) - Traction device included
