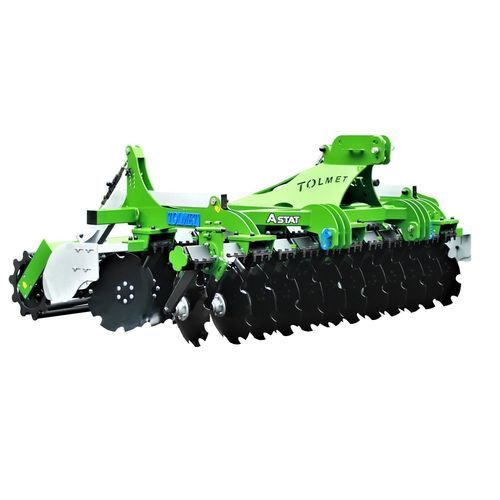

Towed disc harrow ASTAT series

foldingwith hydraulic adjustmenttandem

Standard equipment: - welded hub, - two disc rows of discs with rubber shock absorption, - Ø 560 mm discs with maintenance-free hubs on cone bearings, - rear, tubular roller with bearing Ø 510mm or string roller Ø 440mm, - foldable, adjustable side discs, - reinforced hitch with possibility of trailing on category II and III hooks, - distance between discs 920 mm Optional equipment: - Screwed hub, disc Ø 560 mm - Screwed hub, disc Ø 610 mm - side screens - floating side screens - hydraulic working depth adjustment - route lights - slidable discs - automatic draw bar - optional roller (see table below) Model specifications: Model | Width (m) | Number of discs | Weight (kg) | Power requirement (HP) Astat 220 | 2.2 | 14 | 950 | 60-80 Astat 250 | 2.5 | 18 | 1100 | 80-100 Astat 270 | 2.7 | 22 | 1220 | 100-120 Astat 300 | 3.0 | 24 | 1300 | 110-130 Astat 350 | 3.5 | 28 | 1580 | 130-150 Astat 400 | 4.0 | 32 | 1700 | 150-170 Information about the rollers: Type | Diameter | Available Tubular | Ø 510 mm, Ø 600 mm | ✔ String | Ø 440 mm, Ø 520 mm | ✔ V Ring | Ø 500 mm, Ø 600 mm | ✔ V Ring-bar | Ø 500 mm, Ø 600 mm | ✔ Ring | Ø 500 mm | ✔ Channel bar | Ø 520 mm, Ø 600 mm | ✔ Tee-bar | Ø 600 mm | ✔ Packer | Ø 510 mm | ✔ Crosskill | Ø 380 mm, Ø 550 mm | ✔ Disc | Ø 600 mm | ✔ Rubber | Ø 500 mm | ✔ Spiral | Ø 500 mm | ✔ V Ring-tandem | Ø 500 mm, Ø 600 mm | ✔ V Ring-bar tandem | Ø 500 mm, Ø 600 mm | ✔ String-tandem | Ø 440 mm | ✔ String and pipe-tandem | Ø 440 mm, Ø 510 mm | ✔ Channel-bar tandem | Ø 520 mm | ✔ Tee-bar tandem | Ø 600 mm | ✔ Mulching tandem | pipe Ø 140 mm, pipe Ø 270 mm | ✔ Disc tandem | Ø 600 mm | ✔ Ring tandem | Ø 500 mm | ✔ Crosskill tandem | Ø 380 mm | ✔ Technical characteristics / specifications: - Model: ASTAT - Brand: Tolmet - Category: Disc harrow / Cultivator machinery - Standard and optional equipment as above - Multiple working widths and disc configurations available - Roller options: tubular, string, V ring, V ring-bar, ring, channel bar, tee-bar, packer, crosskill, disc, rubber, spiral, tandem variants
