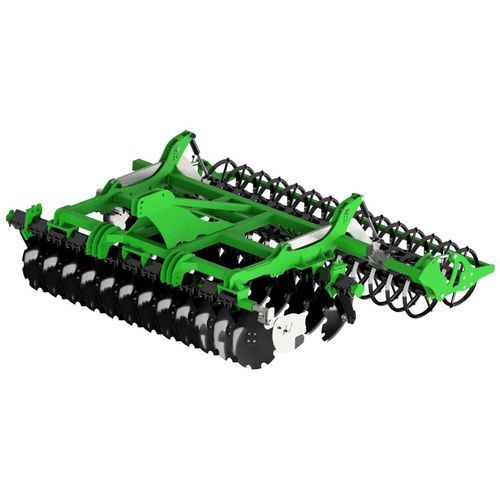

Mounted disc harrow TENES series

3-point hitchfoldingwith hydraulic adjustment

Standard equipment: - welded hub, - possibility to adjust the spacing between the discs: 960 mm – 1100 mm – 1240 mm, - two disc rows of discs with rubber shock absorption, - Ø 560 mm discs with maintenance-free hubs on cone bearings, - rear, tubular roller with bearing Ø 510mm or string roller Ø 440mm, - foldable, adjustable side discs, - reinforced hitch with possibility of trailing on category II and III hooks. Optional equipment: - screwed hub, disc Ø 560 mm - screwed hub, disc Ø 610 mm - side screens, - floating side screens, - hydraulic working depth adjustment, - route lights, - automatic draw bar, - optional rollers (see table below). Model specifications: Model | Width (m) | Number of discs | Weight (kg) | Power (HP) TENES 270 | 2.7 | 22 | 1340 | 100-120 TENES 300 | 3.0 | 24 | 1420 | 110-130 TENES 350 | 3.5 | 28 | 1700 | 130-150 TENES 400 | 4.0 | 32 | 1820 | 150-170 Information about the rollers: Type | Diameter | Available Tubular | Ø 510 mm, Ø 600 mm | ✔ String | Ø 440 mm, Ø 520 mm | ✔ V ring | Ø 500 mm, Ø 600 mm | ✔ V Ring bar | Ø 500 mm, Ø 600 mm | ✔ Ring | Ø 500 mm | ✔ Channel bar | Ø 520 mm, Ø 600 mm | ✔ Tee-bar | Ø 600 mm | ✔ Packer | Ø 510 mm | ✔ Crosskill | Ø 380 mm, Ø 550 mm | ✔ Disc | Ø 600 mm | ✔ Rubber | Ø 500 mm | ✔ Spiral | Ø 500 mm | ✔ V ring tandem | Ø 500 mm, Ø 600 mm | ✔ V Ring – bar tandem | Ø 500 mm, Ø 600 mm | ✔ String tandem | Ø 440 mm | ✔ String and pipe tandem | Ø 440 mm, Ø 510 mm | ✔ Channel-bar tandem | Ø 520 mm | ✔ Tee-bar tandem | Ø 600 mm | ✔ Mulching tandem | pipe Ø 140 mm, pipe Ø 270 mm | ✔ Disc tandem | Ø 600 mm | ✔ Ring tandem | Ø 500 mm | ✔ Crosskill tandem | Ø 380 mm | ✔ Technical specifications: - Adjustable disc spacing: 960 mm, 1100 mm, 1240 mm - Disc diameter: 560 mm (standard), 610 mm (optional) - Number of discs: 22 (2.7m), 24 (3.0m), 28 (3.5m), 32 (4.0m) - Weight: 1340 kg (2.7m), 1420 kg (3.0m), 1700 kg (3.5m), 1820 kg (4.0m) - Required power: 100-120 HP (2.7m), 110-130 HP (3.0m), 130-150 HP (3.5m), 150-170 HP (4.0m) - Category II and III hitch compatibility
