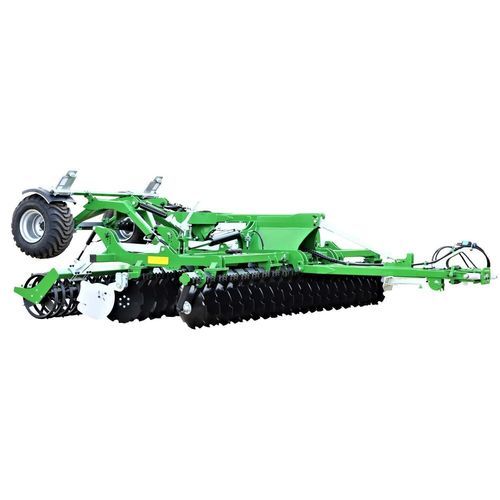

Towed disc harrow MEGATRON 400

foldingwith hydraulic adjustmentdepth control

Standard equipment: - Screwed hub - Two rows of discs with rubber shock absorption - Distance between discs: 920 mm - 560 mm discs with maintenance-free hubs on cone bearings - Rear, tubular roller with bearing Ø 510mm or string roller Ø 440mm - Foldable, adjustable side discs - Slidable discs - Traction device (+1800 kg to the weight given in the table) - Distance between discs: 1100 mm - Electric controller – lifting, lowering, extending, setting the working depth - Side screens Optional equipment: - Welded hub, disc Ø 610 mm - Screwed hub, disc Ø 610 mm - Floating side screens - Front beam wheels - Hydraulic working depth adjustment - Route lights - Pneumatic brakes - Optional rollers (see table) Model specifications: - MEGATRON 400: Width 4.0 m, 32 discs, 3000 kg, 140-180 HP - MEGATRON 450: Width 4.5 m, 36 discs, 3500 kg, 160-200 HP - MEGATRON 500: Width 5.0 m, 40 discs, 3800 kg, 180-220 HP - MEGATRON 550: Width 5.5 m, 44 discs, 4100 kg, 200-240 HP - MEGATRON 600: Width 6.0 m, 48 discs, 4500 kg, 220-260 HP - MEGATRON 800 (ONLY WITH TRACTION DEVICE): Width 8.0 m, 64 discs, 8200 kg, 330-400 HP Information about the rollers: - Tubular: Ø 510 mm, Ø 600 mm - String: Ø 440 mm, Ø 520 mm - V Ring: Ø 500 mm, Ø 600 mm - V Ring-bar: Ø 500 mm, Ø 600 mm - Ring: Ø 500 mm - Channel bar: Ø 520 mm, Ø 600 mm - Tee-bar: Ø 600 mm - Packer: Ø 510 mm - Crosskill: Ø 380 mm, Ø 550 mm - Disc: Ø 600 mm - Rubber: Ø 500 mm - Spiral: Ø 500 mm - V Ring tandem: Ø 500 mm, Ø 600 mm - V Ring-bar tandem: Ø 500 mm, Ø 600 mm - Channel bar: Ø 520 mm - Tee-bar tandem: Ø 600 mm - Disc tandem: Ø 600 mm - Ring tandem: Ø 500 mm - Crosskill tandem: Ø 380 mm Technical characteristics / specifications: - Brand: Tolmet - Model: MEGATRON - Traction device included (+1800 kg to weight) - Electric controller for lifting, lowering, extending, and setting working depth - Available working widths: 4.0 m, 4.5 m, 5.0 m, 5.5 m, 6.0 m, 8.0 m - Number of discs: 32 to 64 depending on model - Weight: 3000 kg to 8200 kg depending on model - Required power: 140-400 HP depending on model - Various roller types and diameters available
